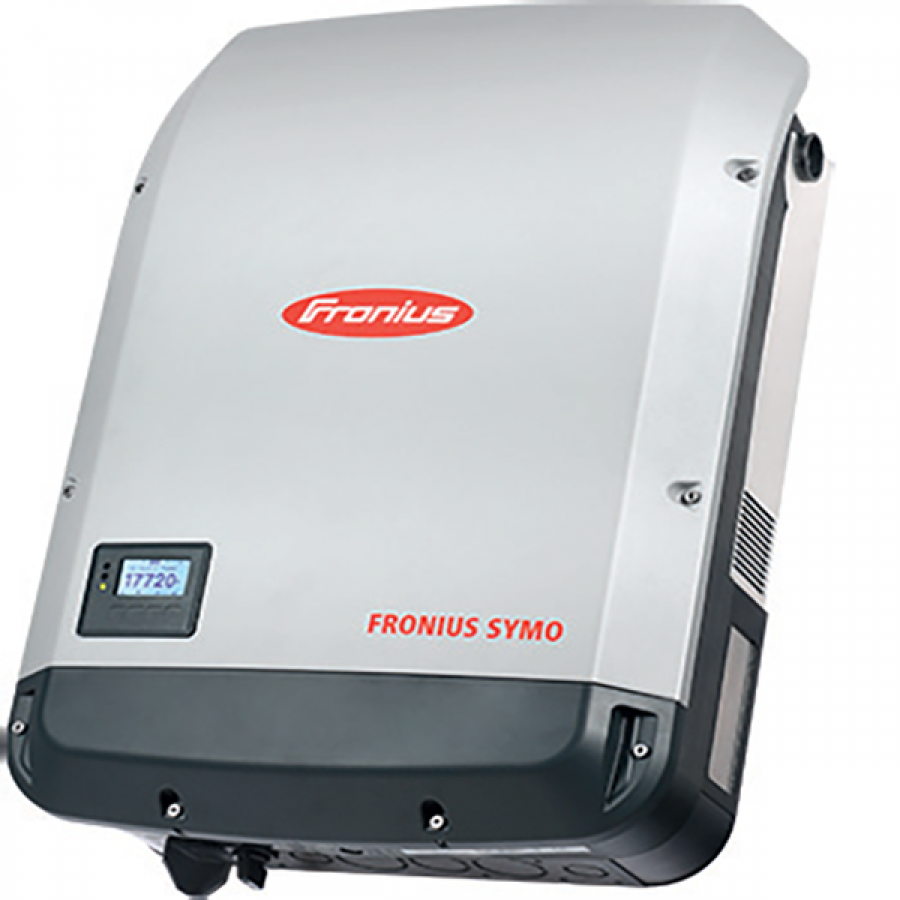

The transformerless Fronius Symo is the ideal compact three-phase solar inverter for commercial applications of all sizes. The Fronius Symo is the clear commercial choice: boasting power classes from 10 kW to 24 kW, necessary features fully integrated, Fronius Design Flexibility with dual MPPT, and a streamlined installation process. The SnapINverter hinge mounting system, lightweight inverter and easy commissioning app make installation possible in under fifteen minutes. Several industry-leading features are available with the Fronius Symo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging (with integration of Fronius Datamanager 2.0 card in one per 100 units), field proven Arc Fault Circuit Interruption (AFCI) and Fronius’ superb online and mobile monitoring platforms. Also field serviceable, The Fronius Symo is the most communicative, efficient, sustainable and streamlined three-phase string inverter available on the market. The Fronius Symo is NEC 2014 and NEC 2017 690.12(B)(1) compliant when installed next to the array or in conjunction with the Fronius Rapid Shutdown Box (600V) or an approved third party Rapid Shutdown Box. The Fronius Symo: powering commercial projects that last.
*The term Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Further documentation is available upon request.
SNAPINVERTER TECHNOLOGY
The Fronius SnapINverter generation features a simple, standardized hinged mounting system that makes installation and service easier than ever. The inverters consist of two main parts: the power stage and the connection compartment, ensuring a convenient installation process. First, you mount the remarkably lightweight connection compartment and all wiring to the wall. Then simply snap the power stage in - allowing for installation within 15 minutes by only 1 person! Furthermore, installers don’t need to remove the entire inverter for servicing. Just take the power stage and leave all wires in place, making the Fronius SnapINverters the most user-friendly inverters on the market.
INTEGRATED DATA COMMUNICATION
Fronius believes that every solar system should be monitored. Therefore, we offer integrated data communication capabilities for all our inverters and free online monitoring with Fronius Solar.web. Simply connect the inverter to the internet via Wi-Fi and use our Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON) interface for seamless data communication to third parties. The different interfaces can be operated in parallel to the Fronius Solar.web online platform. The monitoring is easily set up via our smartphone app - it's so easy, even the home owner can do it.
DESIGN FLEXIBILITY
Fronius inverters offer great design flexibility, giving you all the options you need and making system design extremely simple. Two independent MPP trackers, wide DC input voltage windows and oversizing of up to 150% make the inverters suitable for complex roofs, different array sizes and multiple orientations. The Fronius Design Flexibility offers a solution for all your system design needs
SMART GRID READY
Fronius inverters enable the grid of tomorrow. Our inverters are already equipped to meet the technical requirements of a smart grid of the future. A set of smart functions, known as Advanced Grid Features, are built into the inverters. They include a wide range of control functions for dynamic feed-in of both effective and reactive power. These functions are designed to enable a stable grid and highest solar density, while preventing unwanted system shutdowns if grid parameters exceed their thresholds.
ARC FAULT CIRCUIT INTERRUPTION INTEGRATED
The Fronius Arc Fault Circuit Interruption (AFCI) makes each inverter NEC 2011 compliant and offers a best-in-class solution for detecting arcs. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault within your solar system.
