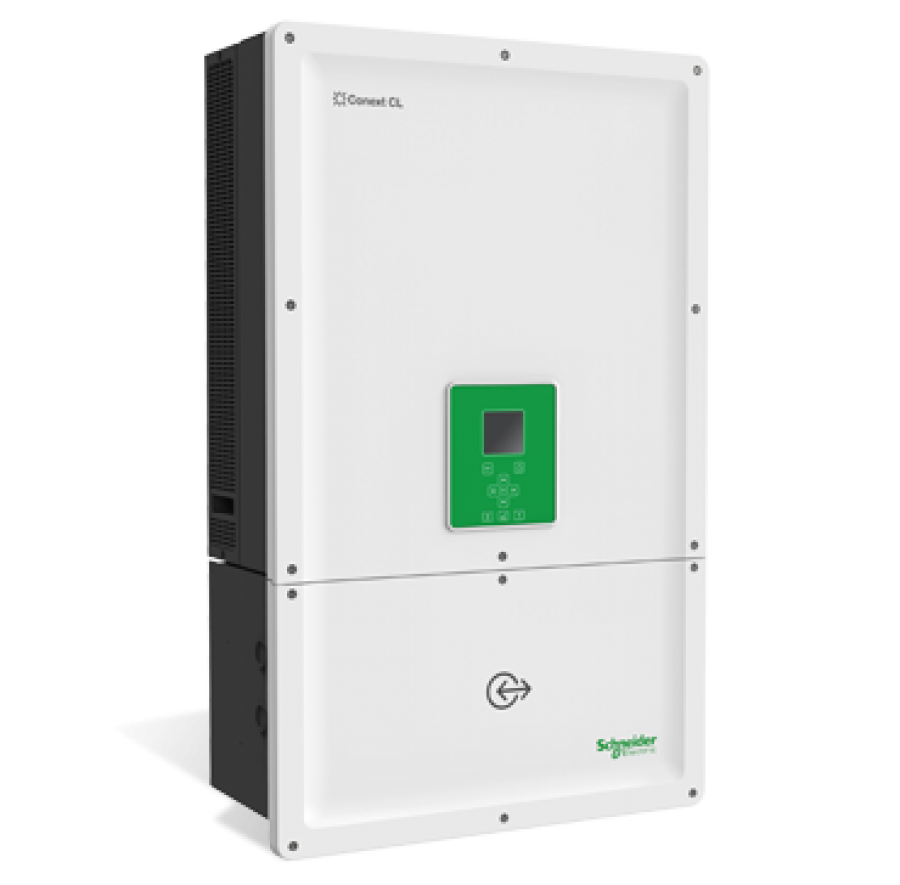

Schneider-Electric, Conext CL-18000-NA, Grid-Tied TL Inverter, 3-PH - PVSCL18NA201

Schneider-Electric, Conext CL-18000-NA, Grid-Tied TL Inverter, 3-PH, 18kW, 277/480Vac, 60Hz, 1000Vdc, 4 String input, Per channel, (add fuses) 2 MPPT, DC Switch, AFCI, Â AC-SPD, DC-SPD, Integrated data logger, 10 yr. Warranty, Model-Optimum+AFD, (2 boxes), PVSCL18NA301 The Conext CL Series is a new line of three phase string inverters designed for high efficiency, maximum flexibility and easy installation and service.
Electrolyte-free design with Schneider Electric’s rigorous reliability test procedures improve the long term reliability.
Five configuration options of integrated wiring box allow for easy, flexible and low cost installations.
Decentralised architecture, full grid support features and system capability together with Schneider Electric’s broad range of medium voltage products make Conext CL the ideal choice for medium and large PV plants. Backed by Schneider Electric’s global service infrastructure, leading manufacturing facilities and its expertise in energy management, the Conext CL Series is the inverter you should trust for quality and reliability.
Features Reliable & Flexible - Robust design through rigorous Multiple Environmental Over Stress Testing (MEOST), Highly Accelerated Life Test (HALT) and Temperature Humidity and Bias testing (THB). Electrolyte-free design to guard against dried cap issue and help to improve long term reliability. Designed and qualified for applications in tropical environments through salt fog testing and use of conformal coating.
Five options of wiring box (base, essential, essential+, optimum and optimum+) to fit different applications. 10° - 90° installation angle to allow for flexible mounting. CL 18000NA supporting both 600 V and 1000 V applications. Flexible & Easy to Service - Touch-safe fuse holder available for easy and protective fuse replacement.
Easily replaceable fan, easy firmware upgrade via USB. Both DC and AC Surge Protection Device (SPD) with included monitoring to help to protect inverter from lightning threat (optimum model).
Detachable inverter to allow for easy installation and upgrades.
Light weight with integrated handle for 2 persons installation.
Both bottom and side cable entry to allow for flexible installation.
Higher ROI - Warranty from a trusted partner with 178 years of experience.
World leader in industrial power drives, UPS and electrical distribution.
Strong service infrastructure worldwide to support your global needs.
High conversion efficiency: 98.4% peak efficiency, 98.0% CEC efficiency.
Great value for money: integrated wiring box saves the cost of external DC combiner box.
Overpaneling capability to allow for maximizing energy harvest.
