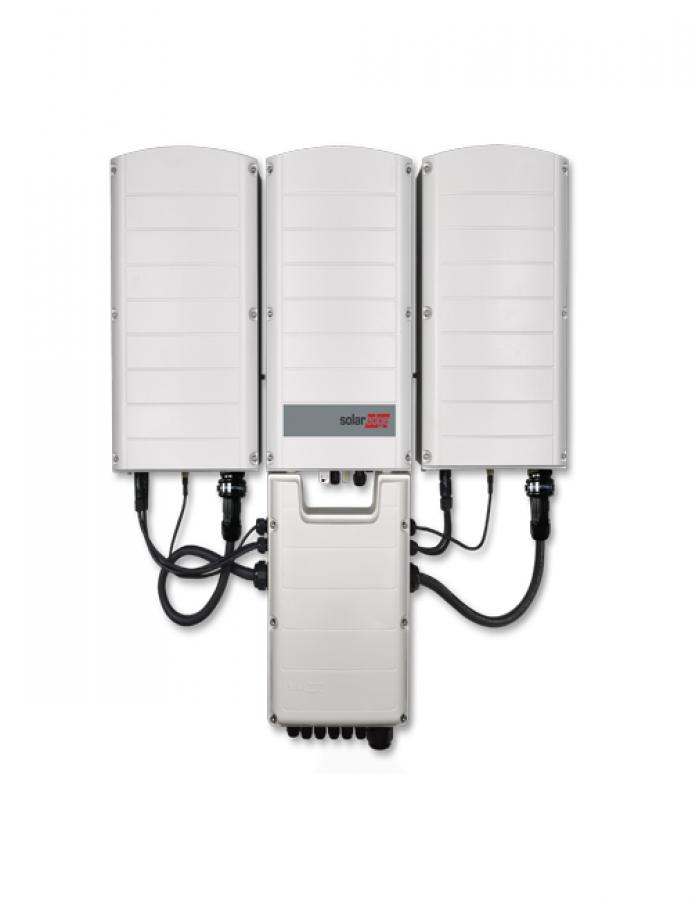

SolarEdge, SE100KUS Grid Tied Inverter, Primary Inverter, (add 2 Secondary Inverters) 3-Ph,
Overview
SolarEdge, SE100KUS Grid Tied Inverter, Primary Inverter, (add 2 Secondary Inverters) 3-Ph, 100kW, 277/480V WYE, 60Hz, 1000VDC, DC Discon, 12 Yr Warr, AFCI, with AC-RSD, -40C, RS485 and Ethernet, DCD w/o Fuses, UL-1741-SA (Rule-21), SE100K-USRP0BNU4
SE_commericial_three_phase_inverters_for_66K_100K.pdf
| Manufacturer: | SolarEdge |
| Product Line: |
Three Phase |
| Model ID: |
SE100K-USRP0BNU4 |
| Certifications and Safety Ratings: |     |
| Mechanical Data |
|
| Technology: | Three Phase String Inverter |
| Primary Unit Dimensions: |
37.00 x 12.50 x 10.50 inches |
| Secondary Unit Dimensions: | 21.00 x 12.50 x 10.50 inches |
| Primary Unit Weight: | 105.8 lbs |
| Secondary Unit Weight: | 99.20 lbs |
| Cooling: | Fans (User Replaceable) |
| Noise: | < 60 dBA |
| Protection Rating: | NEMA 3R |
| Mount: | Bracket Mounted (Brackets Provided) |
| Operating Temperature Range: | -25°C to +60°C |
| Electrical Data |
|
| Output | |
| Rated AC Power Output: | 100000 VA |
| Maximum AC Power Output: | 100000 VA |
| AC Output Line Connections: |
4-Wire WYE (L1-L2-L3-N) Plus PE |
| AC Output Voltage (L-N): | Minimum: 244VAC; Nominal: 277VAC; and Maximum: 305VAC |
| AC Output Voltage (L-L): | Minimum: 422.5VAC; Nominal: 480VAC; and Maximum: 529VAC |
| AC Frequency: | Minimum: 59.3Hz; Nominal: 60Hz; and Maximum: 60.5Hz |
| Maximum Continuous Output Current: | 120 Amps per Phase |
| GFDI Threshold: | 1 |
| Utility Monitoring, Islanding Protection, County Configurable Power Factor, Country Configurable Thresholds: | Yes |
| Input | |
| Maximum DC Power (Module STC): | 135000 Watts |
| Transformer-Less Ungrounded: | Yes |
| Maximum Input Voltage DC to Gnd: | 500 VDC |
| Maximum Input Voltage DC+ to DC-: | 1000 VDC |
| Nominal Input Voltage DC to Gnd: | 425 VDC |
| Nominal Input Voltage DC+ to DC-: | 850 VDC |
| Maximum Input Current: | 26.50 ADC |
| Maximum Input Current: | 120 ADC |
| Reverse-Polarity Protection: | Yes |
| Ground-Fault Isolation Detection: | 350kΩ Sensitivity per Unit |
| CEC Weighted Efficiency: | 98.5% |
| Night-Time Power Consumption: | < 12 Watts |
