Magnum, PT-100 MPPT Charge Controller, 100A, 200+ Vdc, 12/24/48V, Integrated GFDI & AFCI, BTS included, PT-100

Magnum Energy PT-100 Charge Controller, 100A, 200+ VDC, 12/24/48V, MPPT, Integrated GFDI and AFCI, BTS Included

Maximize Energy Harvest and Improve Battery Life

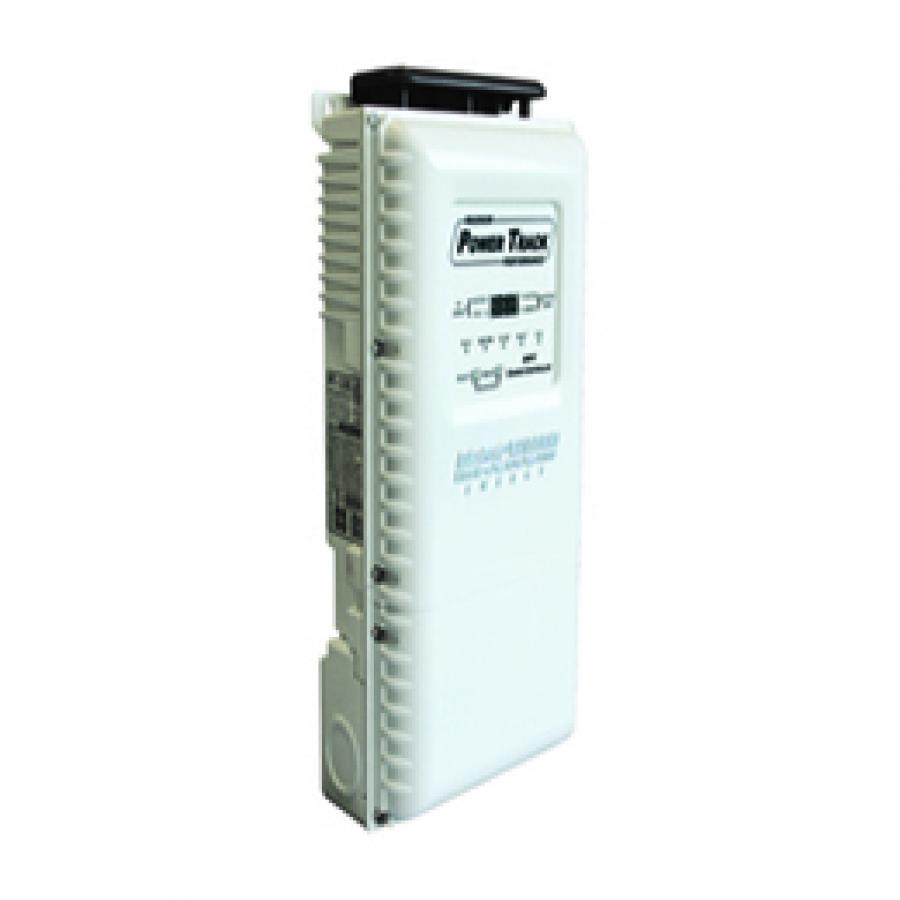

Magnum Energy's PT-100 is a Maximum PowerPoint Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries. The PT-100's MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery. The PT-100 is simple to use and reliable, providing maximum flexibility in sizing your PV array and charging different battery types. It also boasts a high voltage input equal to the battery bank voltage plus 200 volts up to a max of 240 volts open circuit on the input side and a max amperage of 100 amps in/out at 12, 24 and 48 volts. In addition, it has built in ground fault protection, arc fault protection and maintains over 99% efficiency from PV in to DC out, using less than 1 watt on self consumption.

The Magnum-Dimensions brand began as two well-known inverter companies, Dimensions Inverters and Magnum Energy. Dimensions Inverters joined Sensata Technologies in 2007 and Magnum Energy in 2014. Under the Magnum-Dimensions brand, Sensata Technologies continues to manufacture exceptional inverters, inverter/chargers, and accessories catering to mobile applications, including utilities, corporate fleets, RV, marine and Trucks; renewable energy applications, and the export market. Manufactured in Everett, Washington, and St. Paul, Minnesota and shipped worldwide, their products use the highest quality components to respond to the extreme conditions of variable climates.

Magnum_MPPT_PT_100_Charge_Controller.pdf

Features

• MPPT-Maximum Power Point Tracking technology for increased PV power output efficiency.
• Multi-state Charging - Maximizes system performance and improves battery life.
• Optimal Battery Charging - Maximizes system performance and improves battery life.
• Voltage Options - Compatible with 12, 24, or 48V battery systems with automatic detection of system voltage.
• GFDI - Integrated PV Ground- Fault Detection and Interruption/ Indication, with pre-fault leakage/ diagnostic metering.
• Extensive Electronic Protection - Over-temperature protection, power derating when temperature is high, PV short circuit and high PV input shutdown, output overcurrent protection and night-time back-feed (reverse current) protection.
• Support a Large PV Array - A single controller supports a large PV array up to 6600W.
• High Efficiency - The PT-100 provides higher than 99% conversion efficiency and uses less than two watts of power in nighttime mode.

Includes

• LED Indicators and Screen
• AFCI - An integrated PV Arc-Fault Circuit Interrupter detects, indicates, and extinguishes series arcs. The AFCI is designed to meet the new National Electric Code (NEC) Article 690.11 requirements.
• Convenient Installation - Run all of the wiring to the unique, remain-in place wiring box with ease before installing the full PT-100 unit.
• On-site Updates - The PT-100's software can be updated on site.
• Easy MP and MMP integration: The PT-100 is designed to work with a Magnum Panel (MP) or Mini- Magnum Panel (MMP). It provides room and access to PV and battery disconnect breakers.
