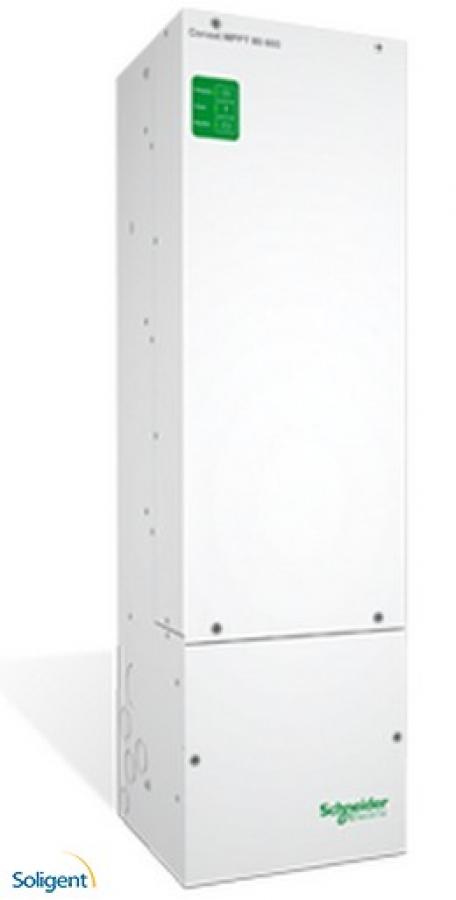

Schneider Electric, XW-MPPT80-600 Charge Controller, 80A, 600VDC, 48VDC, White, 865-1032

PRODUCT OVERVIEW

The Conext™ XW Series is one solution for a wide range of applications including grid-tie, off-grid and backup power. It is comprised of manageable building blocks for single- or three-phase systems ranging from 4 kW to 36 kW. Within the system, the MPPT 80 600 solar charge controller regulates the proper charging voltage of the system’s batteries.

Schneider_XW_MPPT_80_600.pdf

POWERFUL

• 600 VDC maximum input
       -  Full power range: 230 to 550 VDC
       -  Operating range: 195 to 550 VDC
       -  MMPT range: 195 to 510 VDC
       -  PV array start voltage: 230 VDC
• 80 A output
• Full output power at 450 C without derating
• Charges 24 V or 48 V battery banks
• Fast Sweep MPPT algorithm
• High efficiency: 96% nom @ 48 V and 94% nom @ 24 V
• Input over- and under-voltage protection, output over-current and backfeed protection
• Over-temperature protection and power derating when ambient temperatures are high

COST EFFICIENT

• Fewer parts and simpler system reduces design and installation costs
• Combiner box and CB’s eliminated
• Uses smaller AWG wire
• Built in GFP and indicator
• Battery temperature sensor included

FLEXIBLE

• Configurable for positive, negative and ungrounded PV systems
• Long PV strings allow for optimal module configuration and performance
• PDP Mounting Compatible
• Used with both the Conext XW and Conext SW inverter/charger systems 5 year standard warranty
