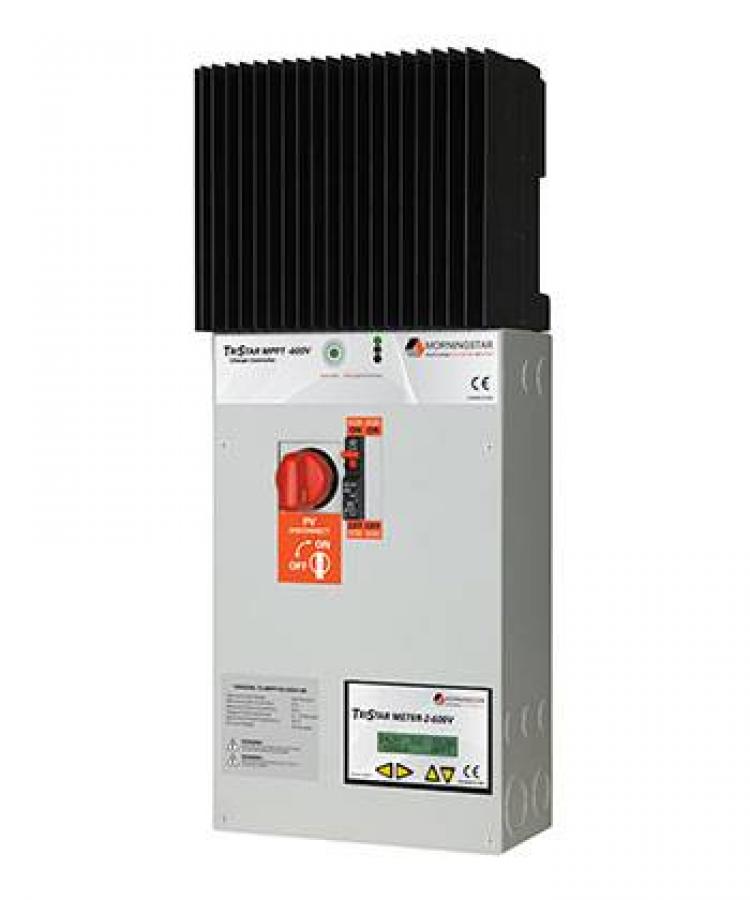

Morningstar > TriStar 60 Amp 600 Volt DC MPPT Charge Controller / Disconnect Box / DC Transfer Switch

Morningstar TS-MPPT-60-600V-48-DB-TR includes a pre-wired DC disconnect box and DC Transfer Switch (600V; 30A double pole; double throw DC Transfer Switch)

Morningstar’s TriStar MPPT 600V Charge Controller (TS-MPPT-60-600V-48-DB-TR) can be used with higher voltage photovoltaic (PV) arrays, and select wind turbines or hydropower systems.* This product enables the following application scenarios:

• Adding modules incrementally with no string sizing issues
• Off-grid PV systems with input voltages greater than 150V
• Wind/hydro battery charging systems*
• Fewer combined circuits and lower current for long wire runs from the array to the controller
• New installation grid-tie PV systems with battery back-up
• Retrofitting grid-tie PV systems to include battery back-up without changing the PV array configuration
• Supplementary charging for AC Coupled PV systems

Morningstar-MSC-Data-Sheet-TS-MPPT-600V.pdf

Specifications

Mechanical

Input (DC)

Product Features

High Voltage Capacity

• Maximum input voltage of 600V
• Operates with PV array Voc voltages up to 525 Voc
• Wind, hydro operating voltages up to 500 Vdc*
• Pre-set for 48 Vdc battery systems
• Programmable for 24V, 36V and 60V battery systems
• Allows long wire runs from the array to the controller
• Higher voltage reduces voltage drop and wire costs
• No combiner boxes required for single or two string systems
• Better enables grid-tie PV systems with battery back-up
• Enables easier PV array expansion than lower voltage systems and accommodates increasing loads

Extremely High Reliability

• Robust thermal design and no cooling fans
• No moving parts
• Superior lightning protection from nearby lightning-induced voltage/current spikes
• Extensive electronic protections
• Epoxy encapsulated inductors and conformally coated
printed circuit boards

Very High Efficiency

• 97.9 % peak efficiency
• Proprietary tracking algorithm minimizes power losses
• Low self-consumption
• Continuous operation at full power to 45°C ambient temperatures without need to de-rate
• Electronic devices with higher ratings to minimize losses from heating

Maximizes Energy Harvest

Morningstar TrakStarTM MPPT Technology features:
• Better peak power point tracking than other MPPTcharge controllers
• Very fast sweeping of the entire PV array
• Recognition of multiple power points during shading or mixed PV arrays
• Low input voltage operation
• Excellent performance at sunrise and low solar insolation levels

Communications Capabilities

• Enables system monitoring, data logging and adjustability. Uses open standard MODBUS™ protocol and Morningstar’s MS View software
• Meterbus: Communications between compatible Morningstar products
• Serial RS-232 and EIA-485 serial connectivity
• Ethernet: fully web-enabled interface to a local network or internet; view from a web browser or send email

Other Features

• High-Low voltage barrier improves safety
• Available with optional Disconnect Box: 600V PV disconnect switch, battery breaker and prewired input/output bus bars
• Available with DC Transfer Switch option for switching from a GT string inverter to battery back
