SimpliPhi, AccESS with Schneider XW 6848-PRO, 120/240Vac, 4 Phi 3.8, LFP Batteries, 1 MPPT

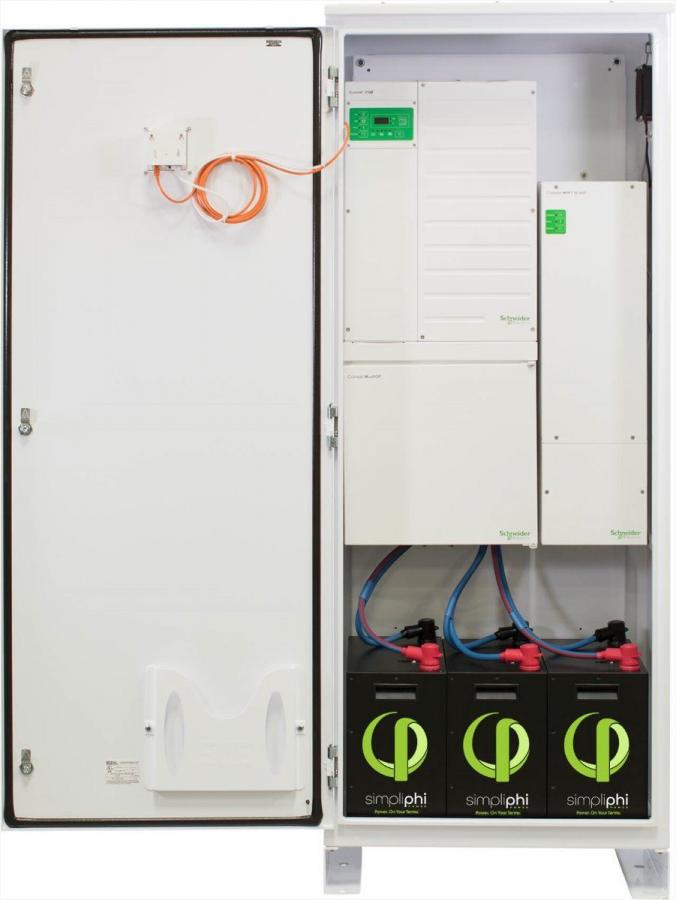

SimpliPhi AccESS - Schneider w/ 3x or 4x PHI 3.5 kWh Batteries and Conext 80 600 Charge Controller, A-3PHI-CC-SCH or A-4PHI-CC-SCH

SimpliPhi Power designs and manufactures efficient, non-toxic, and enduring energy storage and management systems that utilize lithium ferro phosphate (LFP). Based in California, SimpliPhi combines non-hazardous LFP chemistry with its proprietary cell and battery architecture, power electronics, battery management system (BMS), and manufacturing methods to create safe, reliable, durable, and highly scalable on-demand power solutions. Available for the residential, commercial, military, and emergency response markets, SimpliPhi storage solutions have been rigorously tested and passed operational performance requirements by the U.S. Army and Marine Corps. Integral to all SimpliPhi solutions is a proprietary management system that further optimizes the life-cycle, round-trip efficiency rate, performance, and durability of its batteries. SimpliPhi PHI 3.5 kWh 48V 60 Amp batteries are Certified to the UL 1973 Standard.

• AccESS power security with safe, reliable, non-hazardous and efficient energy source
• AccESS any power generation source with intelligent management
• AccESS your own power when and where you need it – inside or outside your home or business

Features:

• Pre-programmed ESS for backup power, peak-shaving, and self-consumption of solar PV
• Internal transfer switch disconnects from the grid automatically during power outages and provides standby power for critical circuits
• Outdoor rated enclosure can be free-standing or pad-mounted
• Advanced LFP batteries with up to a 10,000 cycle / 10-year warranty
• 98%round-trip efficiency
• System monitoring by system control panel or Combox with remote system monitoring by web browser or mobile device app
• No cobalt , thermal regulation,cooling, or risk of fire
• Extended operating temperature
• System control panel or Combox

Applications

• SIA (Standard Interconnection Agreement) customers: ESS allows for solar PV power to be self-consumed, curtailing PV production to prevent the export of power to the grid. Compatible with both string inverters and micro-inverters.
• NEM (Net Energy Metering) customers: add standby power and peak-shaving to a new or existing net-metered solar array
• Off-grid customers: ESS with 4.8 kW Solar MPPT combines power generation and energy management in a single package
• Disaster recovery customers: Reliable, 98% efficient, non-toxic backup power in the event of a power outage

Specifications

• General
  • UN3480, Lithium Ion batteries, 9, II
  • UL and CE listed, UN/DOT and RoHS compliant components
  • Manufactured in the United States
  • Dimensions: 29.5 x 76 x 20 inches
  • Weight: 600 lbs without batteries
  • Enclosure Rating: NEMA 3R Outdoor Rated
  • Operating Temperature: -4 to 122°
  • Mounting: Free-standing or pad-mounted
• Inverter
  • Schneider Electric Conext XW+6848 NA
  • Application: On/Off Grid
  • AC Connections: 1 Grid Port, 1 Generator Port
  • AC Output: 30A, 120/240VAC, 60Hz
  • Max Charge Rate: 60A AC, 7.2 kW
  • CEC Weighted Efficiency: 92.50%
• Battery
  • PHI 3.5 kWh 48VDC 60A
  • UL Rating: ETL Certified UL 1973 Standard
  • Depth of Discharge: up to 100%
  • Round Trip Efficiency: 98%
  • Cycle Life: 10,000+ (@80% DOD)
  • Warranty Period: 10 Years
• System Monitoring
  • Conext ComBox or System Control Panel
• Options
  • Schneider Electric Conext AGS

Variations

• A-3PHI-CC-SCH: 3x PHI 3.5 Batteries
  • Rated Power: 6.8 kW (When operating from battery, the maximum inverter power is half the battery capacity (kWh/2h)
  • Rated Power: 5.25 kW (Max operating conditions. Refer to Warranty for recommended conditions.)
  • Rated kWh Capacity @ C/2: 10.5 kWh
  • Included: Conext MPPT 80 600 Charge Controller
• A-4PHI-CC-SCH: 4x PHI 3.5 Batteries
  • Rated Power: 6.8 kW (When operating from battery, the maximum inverter power is half the battery capacity (kWh/2h)
  • Rated kWh Capacity @ C/2: 14 kWh
  • Include: Conext MPPT 80 600 Charge Controller
