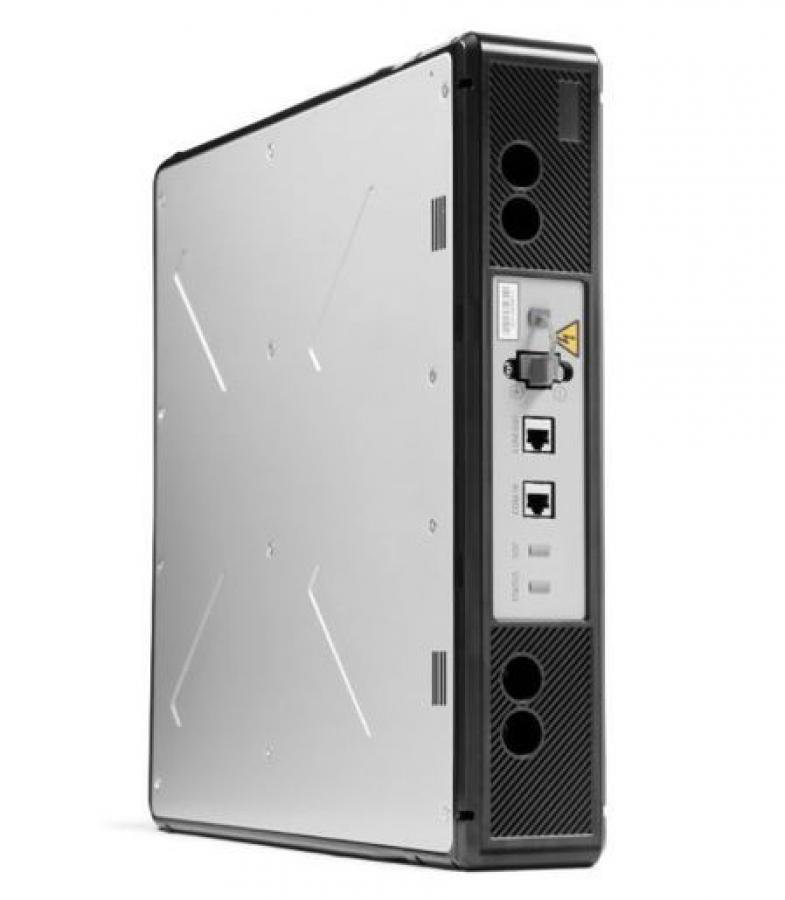

GENERAC PWRCELL G008004 3.0KWH LITHIUM-ION BATTERY MODULE

3.0 storage module Brochure.pdf

FEATURES & BENEFITS
• Suitable for indoor and outdoor use
• Modular: Stack the right number of battery modules for the application
• Upgradeable: Add more modules later when the consumer needs to change
• Easy to install: At just 55lbs, installers won’t need special equipment to move and install these batteries

SPECIFICATIONS
NOMINAL VOLTAGE: 46.8 VDC
USABLE CAPACITY @ TYPICAL VOLTAGE: 3.00 kWh
MAXIMUM AMBIENT OPERATING TEMPERATURE: 14 to 122 °F (-10 to 50 °C)
RECOMMENDED AMBIENT OPERATING TEMPERATURE: 41 to 104 °F (5 to 40 °C)
RECOMMENDED STORAGE TEMPERATURE: 68 °F (20 °C)
SCALABILITY: 3-6 pcs in series
DIMENSIONS, L x W x H - IN (MM): 17.3" x 17.7" x 3.3" (440 x 450 x 84) WEIGHT - LB (KG): 55 (25)
BATTERY CHEMISTRY: Nickel Manganese Cobalt (NMC) WARRANTY: 10 years or 7.56MWh Throughput (per module)
