Panasonic, AC module, N-330 with Enphase IQ7X Micro Inverter, 330W DC, 240V/60Hz AC,
Overview

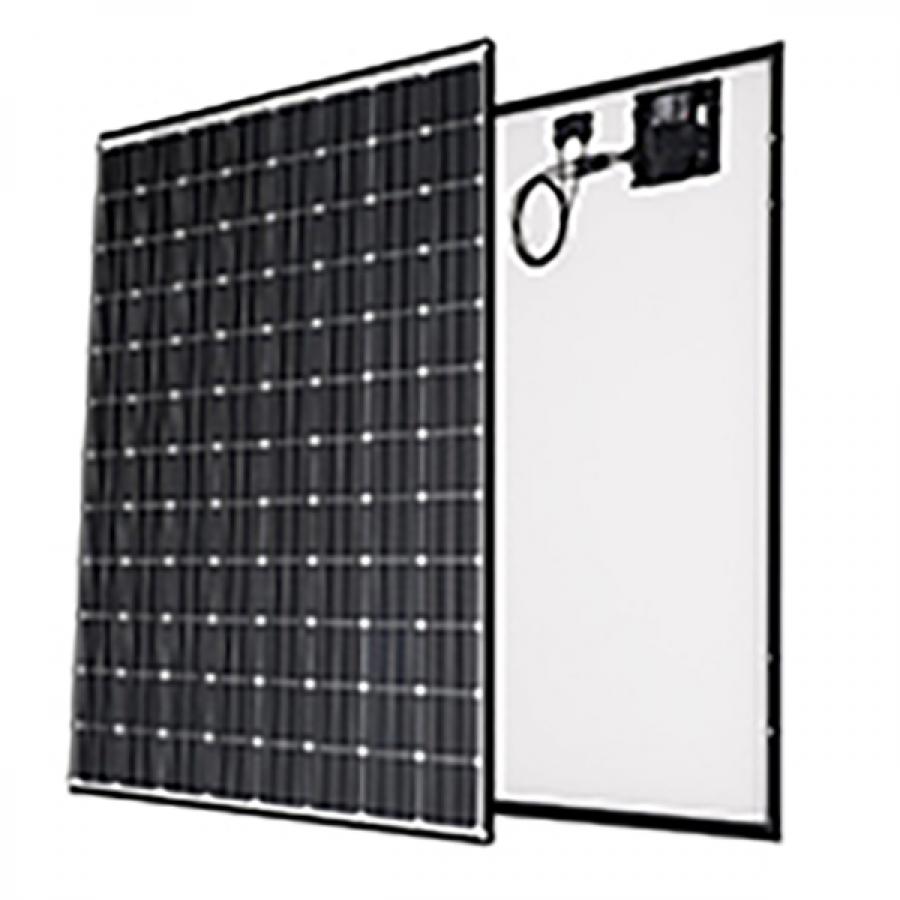

Panasonic, AC module, N-330 with Enphase IQ7X Micro Inverter, 330W DC, 240V/60Hz AC, 40mm Black Frame with White Backsheet, BOW, 311.7 PTC, VBHN330SA17E
PRODUCT DETAILS
HIT® AC Series Module combines the efficiency of HIT® solar panels with the intelligence of Enphase microinverters. An Enphase IQ 7X microinverter with Individual MPPT tracking (Module-level Power Point Tracker) is integrated with HIT® high efficiency solar technology to deliver maximum power production from every roof size and shape. The AC Series alternative energy source offers extreme efficiency and high power output for residential solar systems.
Panasonic solar panels are backed by our industry-leading performance warranty that guarantees minimum power output of 90.76% after 25 years.
KEY FEATURES
- HIT® 330W AC Series solar module with integrated Enphase IQ 7X microinverter
- All-in-one smart panel enables more power, easier installations, lower costs, and higher ROI
- Built-in intelligence for greater design flexibility and higher power efficiency
- Field-replaceable microinverter and no DC wire management required yields lower cost of ownership
- Improved safety and protection when inverter or grid power is shut down
| Model | VBHN330SA17E |
|---|---|
| Series | AC Series |
| Rated Power (Pmax)¹ | 330W |
| Maximum Power Voltage (Vpm) | 58.0V |
| Maximum Power Current (lpm) | 5.70A |
| Open Circuit Voltage (Voc) | 69.7V |
| Short Circuit Current (Isc) | 6.07A |
| Temperature Coefficient (Pmax) | *-0.258%/°C |
| Temperature Coefficient (Voc) | -0.16V/°C |
| Temperature Coefficient (lsc) | 3.34mA/°C |
| NOCT | 44.0°C |
| CEC PTC Rating (Tentative) | N/A |
| Cell Efficiency | 22.09% |
| Module Efficiency | 19.70% |
| Watts per Ft.² | 18.3W |
| Maximum System Voltage | 600V |
| Series Fuse Rating | 15A |
| Warranted Tolerance (-/+) | +10%/-0%* |
| Internal Bypass Diodes | 4 Bypass Diodes |
| Module Area | 18.02 Ft.² (1.67m²) |
| Weight | 42.99 Lbs. (19.5kg) |
| Dimensions LxWxH | 62.6x41.5x1.6 in. (1590x1053x40 mm) |
| Cable Length +Male/-Female | 40.2/40.2 in. (1020/1020 mm) |
| Cable Size / Type | No. 12 AWG / PV Cable |
| Connector Type2 | Multi-Contact® Type IV (MC4™) |
| Static Wind / Snow Load | 112 PSF (5400Pa) |
| Pallet Dimensions LxWxH | 65.3x43.7x48.5 in. |
| Quantity per Pallet / Pallet Weight | 24 pcs/1098 Lbs. (498kg) |
| Quantity per 40’ Container | 672 pcs. |
| Quantity per 20’ Container | 288 pcs. |
| Operating Temperature | -30°C to 85°C (-22°F to 185°F) |
| Hail Safety Impact Velocity | 1" hailstone (25mm) at 52 mph (23m/s) |
| Safety & Rating Certifications | UL 1703, cUL, CEC |
| UL 1703 Fire Classification | Type 2 |
| Limited Warranty | Module: 25** Yrs Workmanship and Power Output (Linear)*** Microinverter: 25 Yrs Workmanship and Materials |
| Manufacturing Location | USA |
| Peak Power Output | 320VA |
| Maximum Continuous Output Power | 315VA |
| Nominal (L-L) voltage/range† | 240V / 211 – 264V |
| Maximum Continuous Output Current | 1.31A @ 240VAC / 1.51A @ 208VAC |
| Nominal Frequency | 60Hz |
| Extended Frequency Range | 47 – 68Hz |
| AC Short Circuit Fault Current Over 3 Cycles | 5.8Arms |
| Maximum Units per 20 A (L-L) Branch Circuit†† | 12 @ 240VAC / 10 @ 208VAC |
| Overvoltage Class AC Port | III |
| AC Port Backfeed Current | 0A |
| Power Factor Setting | 1 |
| Power Factor (adjustable) | 0.7 leading / 0.7 lagging |
| CEC Weighted Efficiency | 97.5% @ 240V / 96.5% @ 208V |
Panasonic - ul_certification_acmodule
Panasonic - AC_module_Data Sheet
