Panasonic, 330W PV Module,

Manufacturer: Panasonic Photovoltaic

Be the first to review this product

Product ID: 110-1127-old

Weight: 45.00 lbs

Call for price

E-mail to a friend

Overview

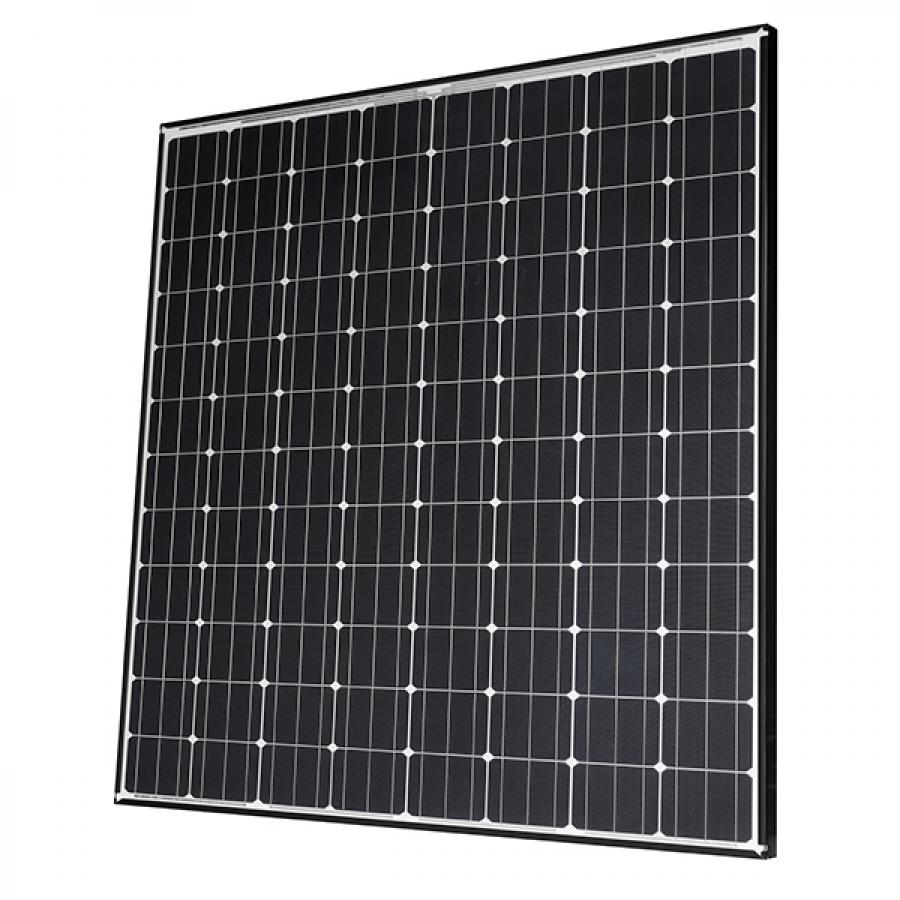

Panasonic, 330W PV Module, MC4, PV Wire, 40mm Black Frame on White backsheet, BOW, 96 cell HIT, 15A Fuse, 600VDC, 311.7 PTC, VBHN330SA17

330K Photovoltaic Module HIT® Black, 40mm

VBH330RA03K

The 96-cell high-efficiency HIT® 330K, 40mm solar panel provides your home with a powerful combination of immediate energy savings, long term performance, and superior curb appeal. Featuring a 19.7 module efficiency and 330 watts per panel, 330K delivers an advanced renewable energy source with zero emissions for any home. A remarkably low temperature coefficient of -0.258%/°C helps generate greater electricity output even on the hottest days.

Panasonic HIT® residential solar panels are backed by our complete TripleGuard warranty that guarantees minimum power output of 90.76% after 25 years and covers performance, parts, and labor for 25 years.*

KEY FEATURES

19.4% module efficiency and sleek all black appearance
Pyramid cell structure design for optimal sunlight capture
Low temperature coefficient of -0.258%/°C produces higher power output at high temperatures
Heterojunction technology with ultra-thin amorphous silicon layers reduce electron loss
Water drainage frame design prevents rain accumulation, eliminates water stains from panel surface

N330K Photovoltaic Module HIT® BLACK, 40mm

Panasonic premium N330K, 40mm solar module delivers greater power conversion, superior long term performance and enhanced aesthetics for every home. Over 40 years of solar research and development goes into every Panasonic HIT® high efficiency home solar panel.

Featuring high output 21.8% module efficiency, slim all-black appearance, and 325 watts per panel, N330k provides an advanced renewable energy source with zero emissions.

19.4% Module efficiency and sleek all black appearance

Greater power output with fewer panels. Our space-saving N330K solar panels set the standard for long-term conversion efficiency. Using 96 cells in the same size footprint as 60-cell panels, N330K delivers more power output per square foot, making it ideal for small and large roofs alike.

UL 1703 Certification

Panasoniv VBHN warranty

VBHN320KA03 330w Data Sheet
