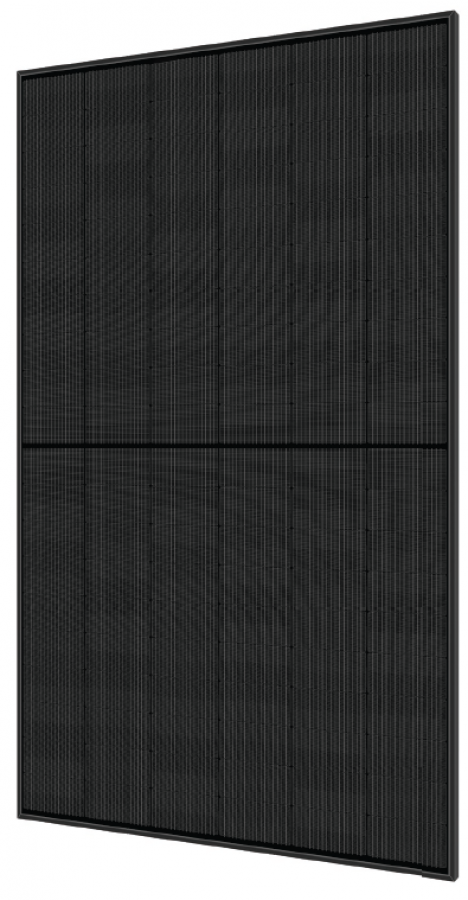

PANAS - EVPV370K
Overview
EVERVOLT™ SOLAR MODULE BLACK SERIES
Rated Power (Pmax)¹ 370W
Maximum Power Voltage (Vpm) 37.4V
Maximum Power Current (lpm) 9.90A
Open Circuit Voltage (Voc) 44.1V
Short Circuit Current (lsc) 10.55A
CEC PTC Rating 350.7W
Module Efficiency 21.2%
Maximum System Voltage 1000V
Maximum Series Fuse 25 A
Watt Class Sorting -0/+10W
Rated Power (Pmax)¹ 370W
Maximum Power Voltage (Vpm) 37.4V
Maximum Power Current (lpm) 9.90A
Open Circuit Voltage (Voc) 44.1V
Short Circuit Current (lsc) 10.55A
CEC PTC Rating 350.7W
Module Efficiency 21.2%
Maximum System Voltage 1000V
Maximum Series Fuse 25 A
Watt Class Sorting -0/+10W
