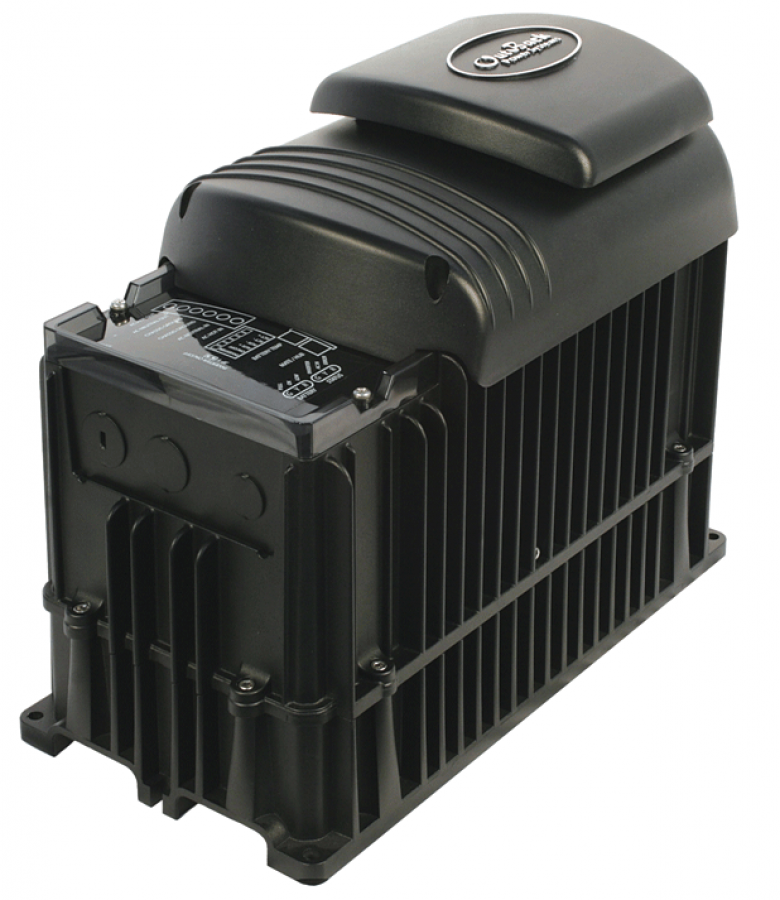

Outback, VFXR3648A-01 Battery Inverter

Outback FXR-VFXR Spec Sheet.pdf

Outback, VFXR3648A-01 Battery Inverter, 3600W, 120VAC, 60Hz(50Hz) selectable, 60A AC input, 48VDC, Sinewave, Grid Tied, 5 Yr Warr, 45A Charger, with BTS, VFXR3648A-01

OutBack's latest VFXR Series Grid/Hybrid inverter/chargers deliver the most cutting-edge features on the industry's most powerful and well-proven platform. The VFXR Grid/Hybrid inverter/chargers, which can run off-grid or grid-connected in one model, provide system designers with unrivaled versatility and compatibility for nearly any power conversion scenario.

OPTICS RE allows you to monitor and power your computer from anywhere and can be mounted using VFXR inverter/chargers and a MATE3. With power ranges ranging from 2000W to 3600W, multiple units can be stacked and combined with other OutBack Power electronics for more seamless system integration and the ability to operate in a wide variety of applications and system sizes. Up to nine inverters can be combined in a 3-phase configuration with the 12V, 24V, or 48V models and up to 36kW in a grid-tied 24V or 48V setup. Thanks to the exclusive modular device architecture, increased power output is just a VFXR inverter/charger away.

The VFXRs are available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to withstand the harshest environmental conditions, such as high temperatures, humidity, or corrosive salt air. They continue OutBack's tradition of absolute dependability in mission-critical installations, no matter how harsh or challenging the conditions.
