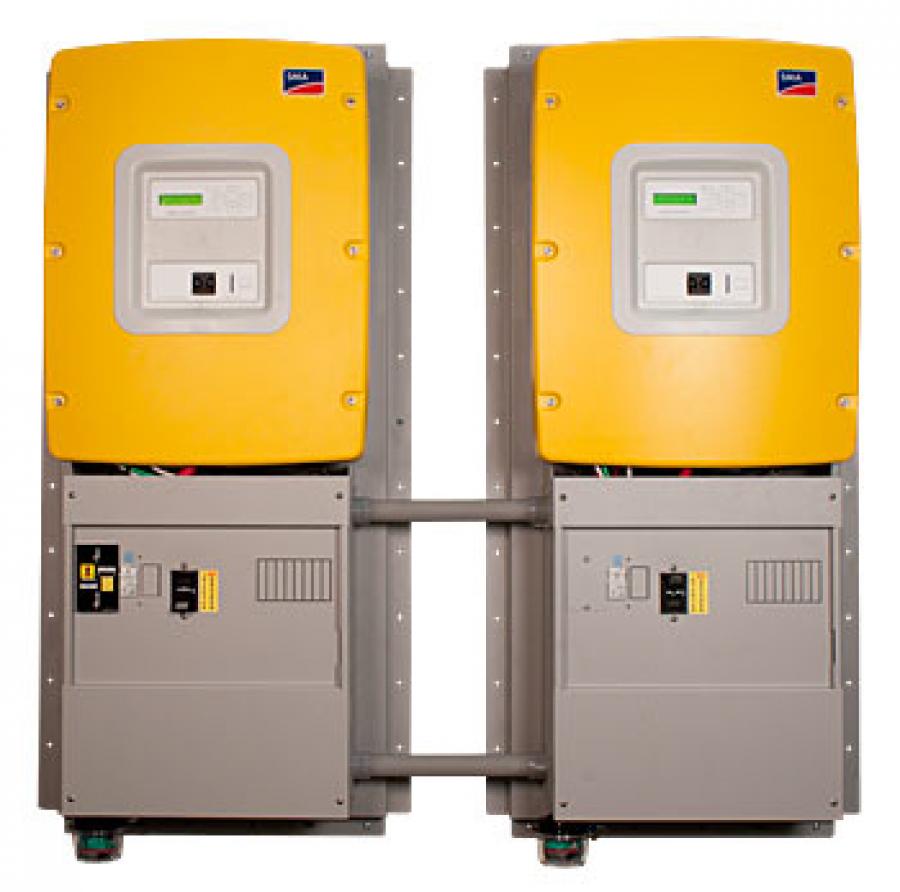

Midnite Solar, Pre-Wired AC Coupled System, 120/240VAC, 2 SMA Sunny Island 6048, 6000 watt/48Volt Inverters, E-Panels, AC By-Pass, 250A Main Battery Breakers, 2 SPD300 Surge Suppressors, MNSI6048D-ACCPL

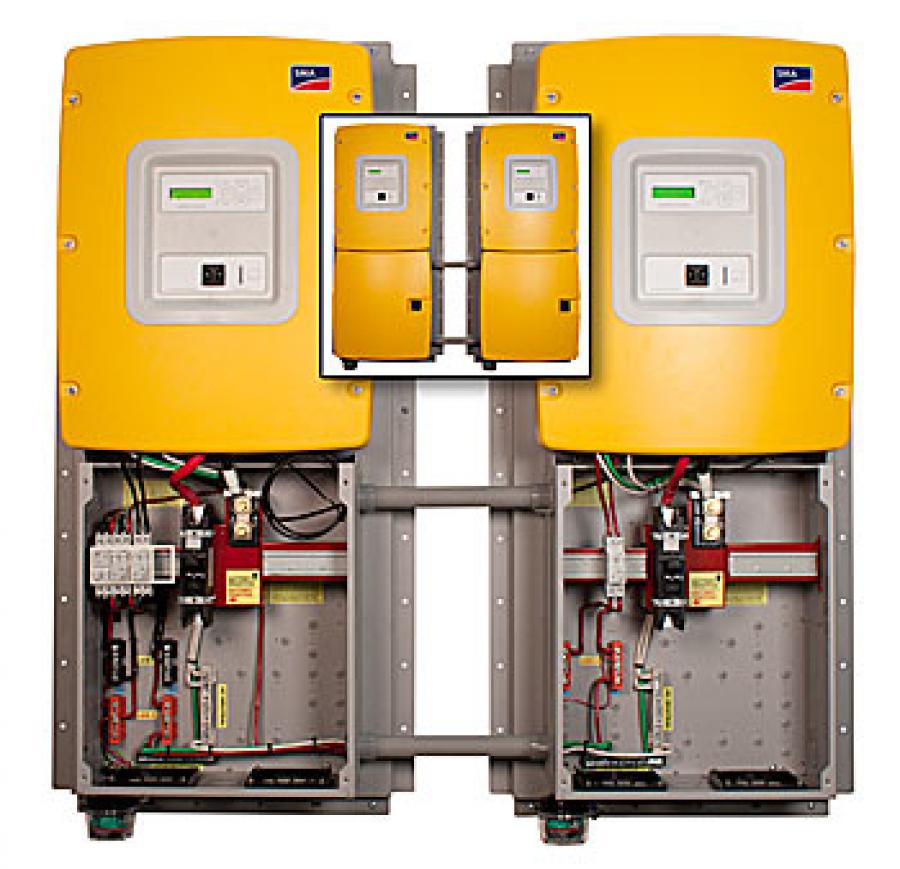

Midnite Solar, Pre-Wired Power Panel, 12.0kW, AC Coupled, 48VDC, 120/240VAC, Dual SI6048, Rapid Shutdown, MNSI6048D-ACCPL-RSS MidNite Solar pre-wired inverter systems offer a turn key solution to installing a battery based inverter system, saving time in the field. With a pre-wired solution all of the confusion is taken out of selecting all the right parts. Hookup between inverters done with included wire and conduit. This system uses 2 of the SMA Sunny Island inverters that are rated at 6,000 watts each and uses a 48 volt battery. It is specifically designed for AC coupling Grid Tie inverters. It works with up to 12KW of grid tie inverter. If more than 12KW of grid tie PV is needed please see the MNSI6048D-ACCPL-SMARB it will handle up to 19KW of grid tie inverter. It produces 120/240 volts AC and has a single AC input.Dont forget to look at our other products that compliment the pre-wired inverter system like our Battery Boxes or Disconnecting Combiners. Our pre wired systems can be configured in about any way needed with any of the common battery based inverters (except Outback). Please contact us for a quote if the System you need is not listed. Below is a simple list of the major components included in the system. The MNSI6048D-ACCPL-RSS is a Rapid Shut down compliant upgrade of this model. The RSS Upgrade includes: RT main DC breaker (125, 175 or 250 amp depending on E-Panel) A MNBDM (to control the main breaker) A MNEPV5 DC breaker to protect the wire and MNBDM Full function testing of the rapid shut down. NOTE: the Birdhouse, Combiners and Cat-5 cable are sold separately. Features Modern Technology & Value - Environmental Rating - Type 1 (Indoor). Two SMA Sunny Islands Pre-Wired 6048s 120/240 vac Inverters for Off Grid or Battery based Grid tie. MNE250SMA-OG SINGLE & MNE250SMA-SLAVE E-Panels. AC Bypass Assembly. Two MNSPD300's (Surge Protection Devices). Two 250 amp Battery Main Breakers for the Sunny Islands. Warranty - 5 yrs. Listed by ETL for US & Canada. MidNite E-Panel and SPD's made in the USA. SMA Sunny Island Inverter made in Germany. General labor for assembly, test and crating included.
