OutBack's pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR A-01 Series Grid/Hybrid inverter/chargers and meet UL 1741-SA Certification per California's Rule 21.
With the newest Inverter/Chargers meeting UL 1741-SA advanced inverter testing as defined in California's Rule 21, OutBack's FP1 VFXR3524A-01 FLEXpower ONE system is further capable of off-grid or grid-connected operation in a single unit. This means the most advanced Grid/Hybrid inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value. Some of the features and technologies include:
4 models available for 120VAC applications, ranging from 2500W to 3600W.
50Hz/60Hz selectable for regional diversity.
Programmable for seven different modes including GridZero, blending utility power and stored renewable energy, minimizing grid dependence and also providing a Support Mode for seamless generator integration.
Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including Lithium Ion, and Aqueous types.
Field-upgradability eliminates system down-time for critical updates.
Remote system control and monitoring available through any internet-enabled device with OPTICS RE.
With its compact design and easy-to-install mounting system the FLEXpower ONE can be mounted in more space-limited locations. The FP1 VFXR3524A-01 FLEXpower ONE is ideal for smaller residential and commercial power applications including cabins, remote communication sites and backup power systems. OutBack's FLEXpower ONE FXR A-01 accommodates all balance-of-system components in a cost-effective manner with the smallest footprint possible. Up to nine inverters can be combined in a 3-phase system with the 12V, 24V or 48V models and up to 36kW in a grid-tied 24V or 48V system. The exclusive modular system architecture means that increased power output is just an additional FXR A-01 inverter/charger away.
The FXR A-01-Series of inverter/chargers are available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air. These inverter/chargers continue in OutBack's tradition of absolute dependability in mission critical installations no matter how harsh or challenging the conditions.
Additional Features
Single-phase 120V, True Sinewave Output in 24V
3500W Vented Model
Programmable for Seven Different Modes with Generator Assist
Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
Up to 93% Operating Efficiency
Field Upgradable Software
5-Year Standard Warranty with a 10-Year Option (sold separately)

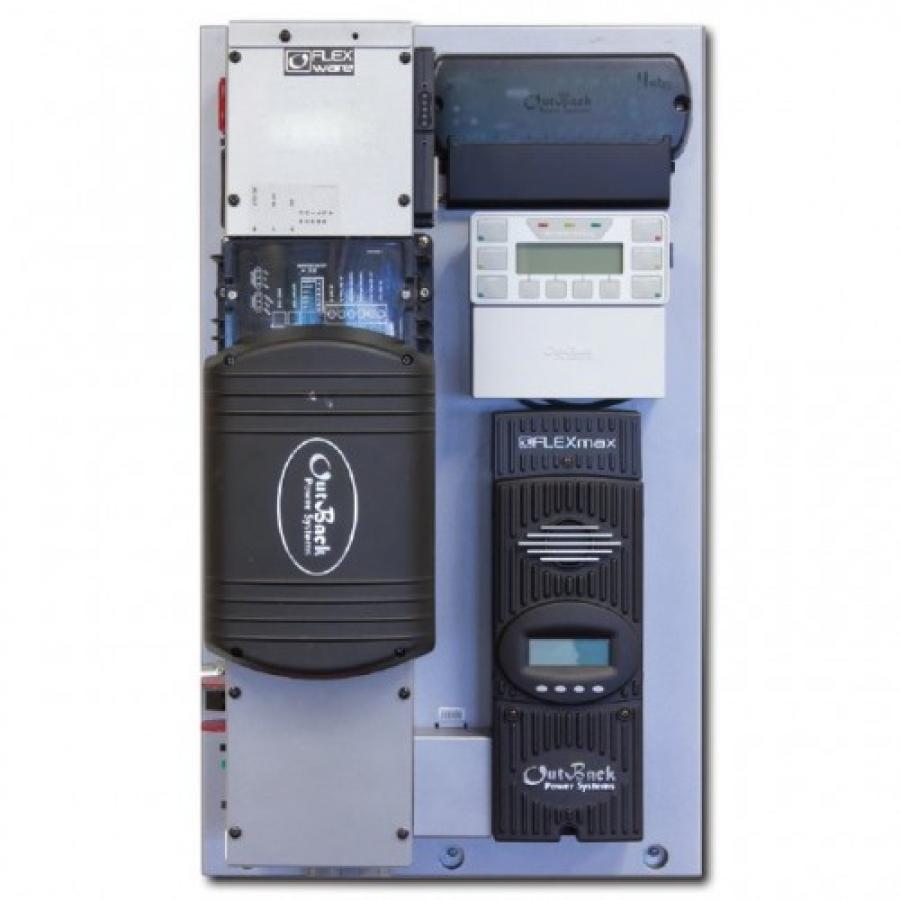

Each FP1 VFXR3524A-01 FLEXpower ONE Is Factory Built and Pre-Wired with These Components
(1) VFXR3524A-01 Vented Inverter/Charger
(1) FM-80 Charge Controller
(1) MATE3s Communications Controller
(1) HUB 10.3 Communications Hub
(1) FN-DC FLEXnet DC
(1) FW-SP-250 Surge Protector
(1) FP1 Mounting Plate and Bracket
(2) FW250 AC/DC Disconnect Boxes
(1) RTS Remote Temperature Sensor
(1) FW-IOBS-120VAC AC Input/Output/Bypass Kit
(1) PNL-GFDI-80 PV Ground-Fault Detector Interrupter Breaker
(1) PNL-80-DC PV Circuit Breaker
(1) PNL-250-DC Battery Breaker
(1) PNL-1-AC/DC FLEXnet DC Breaker
Mounting Locations for GFCI Outlets
