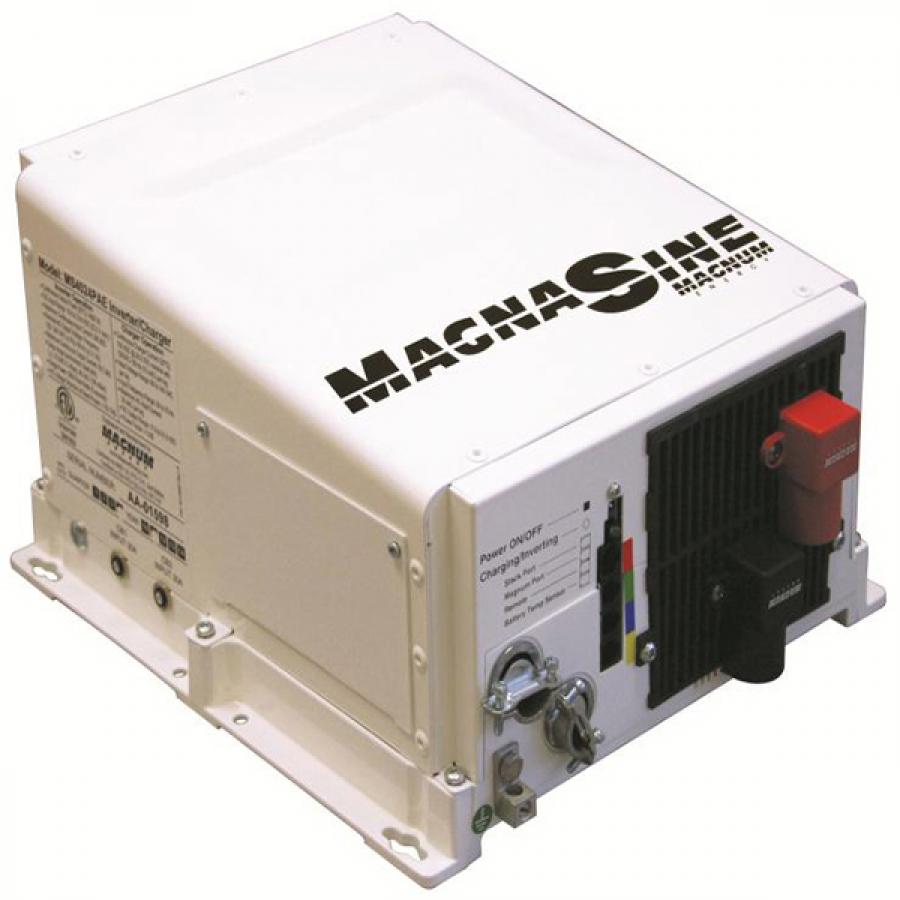

Magnum, MS4024PAE battery inverter

Magnum Energy's MS4024PAE (MS-PAE Series) 120/240V Inverter/Charger is a pure sine wave inverter tailored to the most demanding renewable energy applications. The MS-PAE Series is capable, simple to use, and, most importantly, cost-effective.

The MS-PAE Series' unique design allows it to provide 120—and 240-volt output in one unit, eliminating the need to stack two units together to achieve 240 volts.

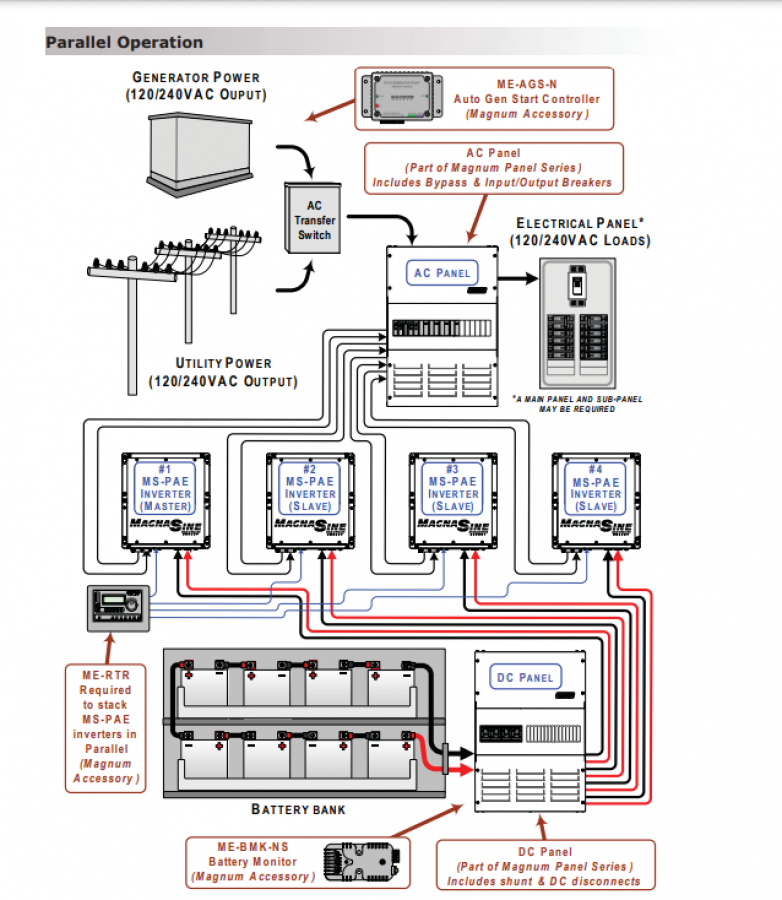

Parallel stacking: Up to four inverters/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. The MP panels and router are needed for parallel stacking the MS-PAE Series.

Magnum Energy's Power Factor Corrected (PFC) charger is integrated into all of its inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.

Safe and dependable: The MS-PAE Series is ETL-listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.

Features

• Compatibility—Parallel stacking: Up to four inverters/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. The MP panels and router are needed for parallel stacking the MS-PAE Series.
• Safety—The MS-PAE Series is ETL-listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
• User-Friendly—Magnum Energy's Power Factor Corrected (PFC) charger is integrated into all of its inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.
