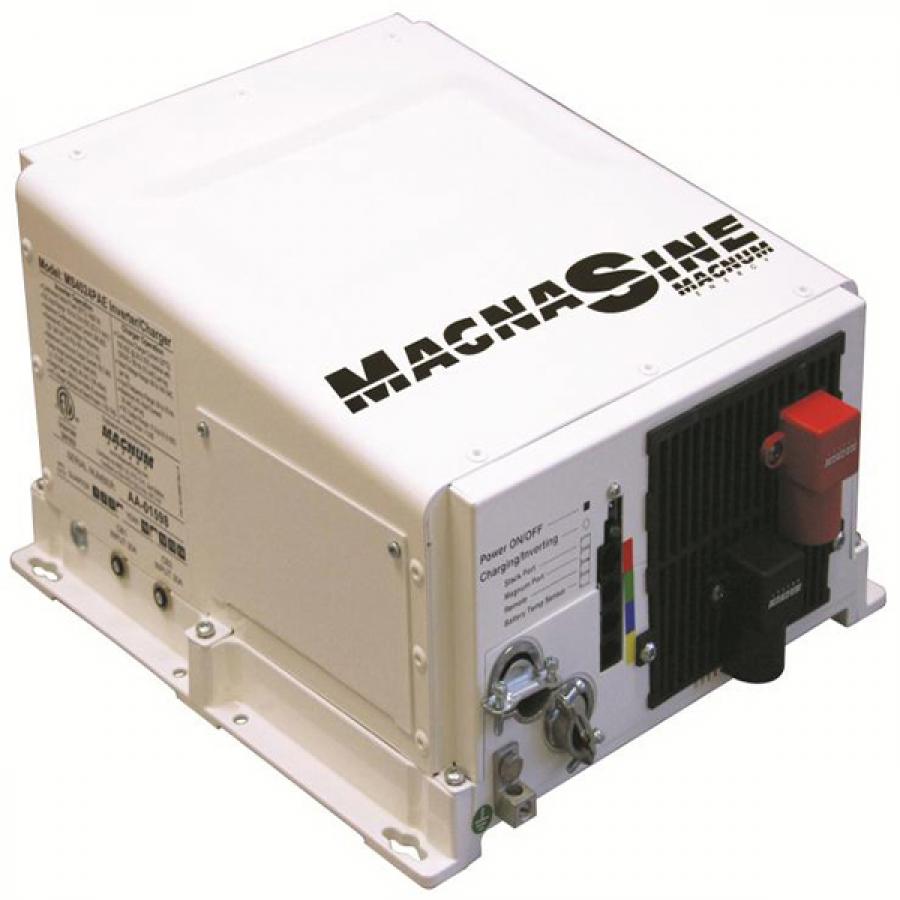

Magnum, MS4448PAE battery inverter

Magnum MS-PAE-series_datasheet.pdf

Magnum Energy's MS4448PAE (MS-PAE Series) 120/240V Inverter/Charger is a pure sine wave inverter suited to the most demanding renewable energy applications. The MS-PAE Series is capable, simple to use, and, most importantly, cost-effective.

The MS-PAE Series' unique design allows it to provide 120—and 240-volt output in one unit, eliminating the need to stack two units together to achieve 240 volts.

Features

• Compatibility—Parallel stacking: Up to four inverters/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. The MP panels and router are needed for parallel stacking the MS-PAE Series.
• Safety—The MS-PAE Series is ETL-listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
• User-Friendly—Magnum Energy's Power Factor Corrected (PFC) charger is integrated into all of its inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.

PRODUCT OVERVIEW The MS4448PAE (MS-PAE Series) 120/240V Inverter/Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications.
The MS-PAE Series is powerful, easy to use, and, best of all, cost-effective.
No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240-volt output in one unit, eliminating the need to stack two units together to get 240 volts.

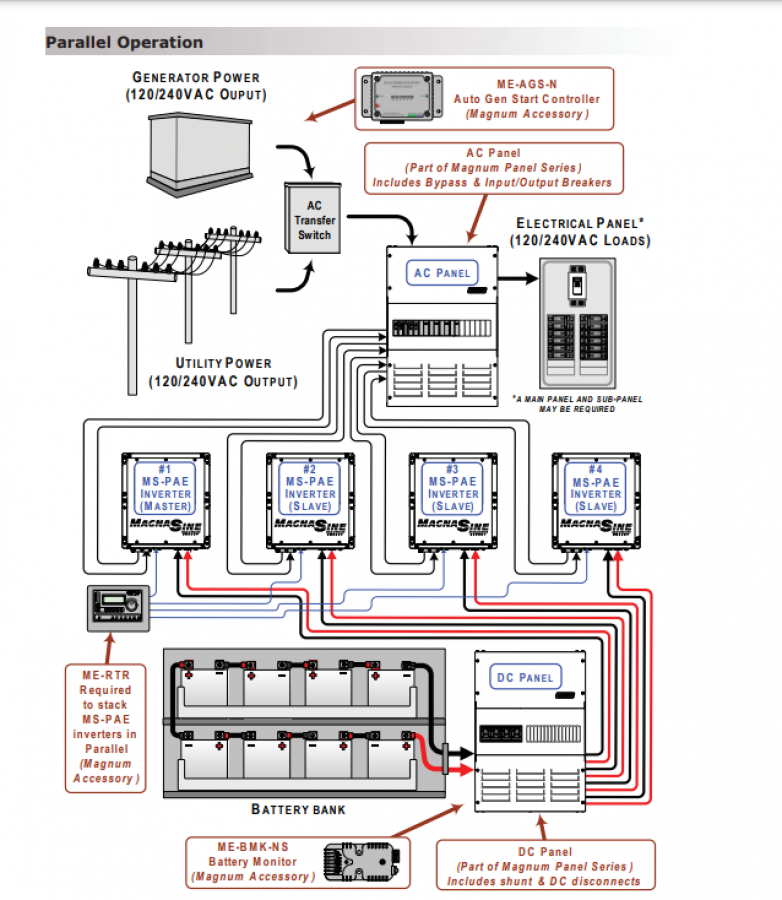

Parallel stacking: You can parallel up to four inverters/chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series.
Power Factor Corrected (PFC) Charger: Magnum Energy's PFC charger is built into all of their inverter chargers.
It uses less energy from a generator than a standard charger – , using 25-30% less AC current than standard chargers. Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations. FEATURES Pure sine wave 24 and 48-volt configurations Versatile mounting Lightweight Multiple ports Accessible design Convenient switches Backed by a three-year (36-month) limited warranty and a five-year limited warranty when installed on an MMP or MP system
