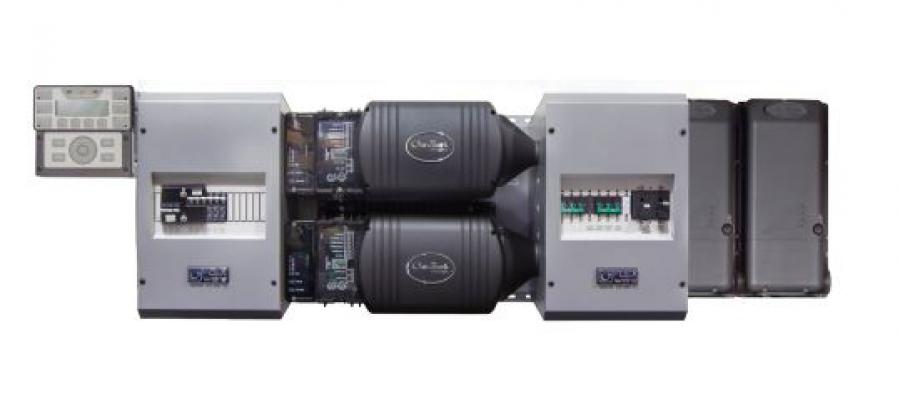

OutBack Power FP2 FXR2524A-01> 5.0 kW FLEXpower TWO Fully Pre-Wired & Factory Tested Dual Inverter System - UL 1741 SA Compliant
Fully Pre-Wired Dual Inverter System
UL 1741 SA, CA Rule 21, and HECO Rule 14H Compliant
Ships in approximately 3-4 Weeks
Dual FXR2524A-01 5.0kW FLEXpower TWO, prewired AC & DC boxes with AC bypass 250A DC breakers, PNL-GFDI-80D and 80 Amp charge controller breakers, HUB 10.3, RTS, FLEXnet DC, surge protectors plus two FLEXmax 80 MPPT controllers, MATE3 and brackets
Specifications
Model FP2 FXR2524A-01
Series FLEXpower TWO FXR
Manufacturer Outback Power
Application 120/240 VAC, 50/60 Hz
Inverter Model FXR2524A-01 (x2)
Charge Controller FlexMax 80
Dimensions 46.5" x 20.25" x 13"
Weight 256 lbs
Shipping Method Freight
Detailed Information:
Factory tested, pre-wired and pre-configured systems
Fast installationjust hang on the wall with the bracket (included) and make connections
Off-grid and grid-tied functionality in one flexible system
Powerful system in a compact, space-saving footprint
Field-upgradable software
Ample AC and DC breaker provisions
GridZero technology effectively lets users zero out the utility grid if enough renewables are present, reducing or even eliminating grid dependence
Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
All components carry necessary ETL certifications
OutBacks pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR Series Grid/Hybrid inverter/chargers. This means that the most advanced Grid/Hybrid inverter features are now available on the industrys most trusted and proven systems platform, for unmatched flexibility and value.
7 models available for 120VAC or 230VAC applications, ranging from 5000W to 7200W.
50Hz/60Hz selectable for regional diversity.
Programmable for seven different modes including GridZero ,which blends utility power and stored renewable energy, minimizing grid dependence; also Support Mode for seamless generator integration.
Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including Lithium Ion, and Aqueous types.
Field-upgradability eliminates system down-time for critical updates.
Remote system control and monitoring available through any internet-enabled device with OPTICS RE.
The FLEXpower TWO is an ideal full-sized solution for residential and commercial applications including homes, farms, small businesses, and back-up power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
The Future of Grid-Tie Stability
As more PV is installed on electrical grids, grid operators need flexible tools to help ensure stability and reliability. Areas with the highest PV penetration rates (Hawaii and California) will soon require grid interconnected systems to have "Grid Support" functions.
OutBack Power is certifying the Radian Series inverter/chargers (along with the FXR Series in the near future) under the new UL 1741 SA test standard to demonstrate compliance with these new requirements from CA Rule 21 and HECO Rule 14H.
What is UL 1741 SA and When Does it Take Effect?
UL 1741 SA is the new safety test standard certifying products which meet the rigorous requirements needed to ensure safe and reliable operation in support of grid modernization efforts. Grid support or "smart inverter" functionality will be required by Hawaii and California beginning September 8, 2017.
Although Hawaii and California are the first states to require grid support functions, expected updates to the IEEE 1547 interconnection standard will make these functions mandatory throughout most of North America within two to three years.
Is Grid Support Important?
As the PV market has grown, the industry has seen increasing grid instability, voltage rise limits, and a lack of standard communication protocol. With added grid support functions, the Radian Series inverter/chargers are being listed to UL 1741 SA, solving key grid integration challenges. UL 1741 SA compliance is planned for OutBack's FXR A Series in the near future.
With the advent of grid support technology, UL 1741 SA compliant models can regulate voltage and power, and they can prevent loss of power generation due to grid disturbances.
