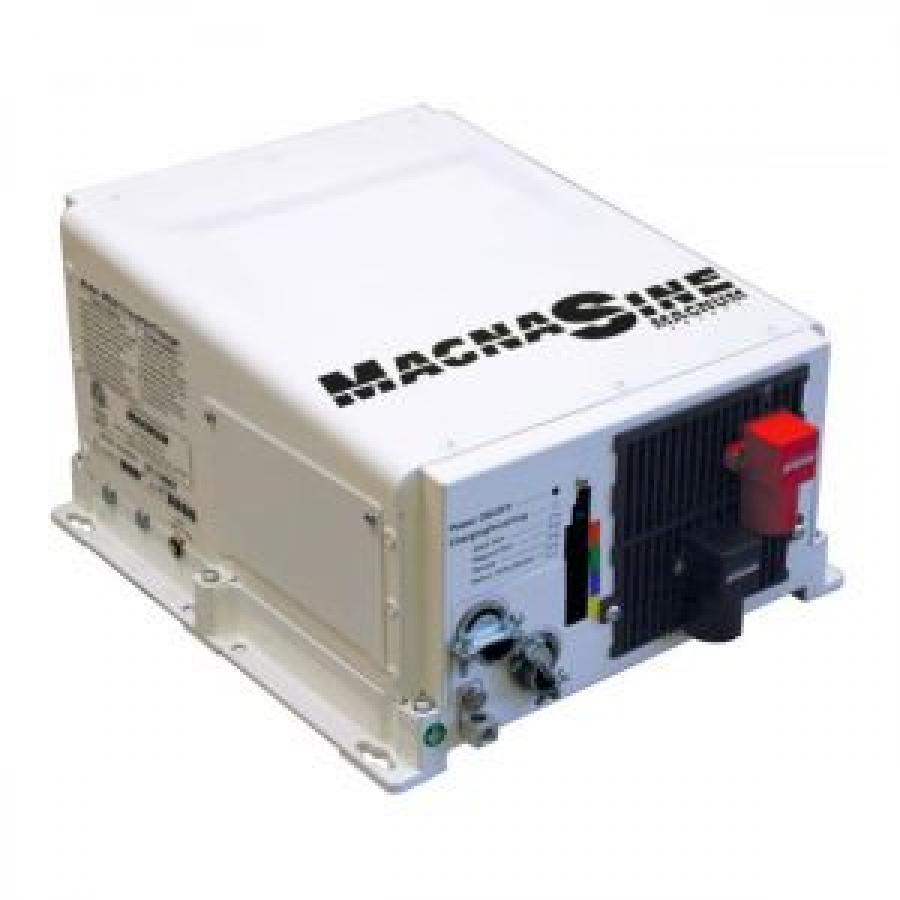

MAGNUM MS2012-20BL-U 2.0KW 1-PH INVERTER

MAGNUM MS2012-20BL-U 2.0KW 1-PH INVERTER

Manufacturer: MAGNUM ENERGY

Be the first to review this product

Product ID: 320-0065

Weight: 47.00 lbs

Call for price

E-mail to a friend

Overview

Manufacturer Part #: MS2012-20BL-U
Magnum, MS2012 battery inverter, 2000W, 120VAC, 60Hz, 2x30A Transfer, 12VDC, Sinewave, Off Grid, 2 Yr Warr, 100A Charger, with BTS & 2x20A AC Breakers, MS2012-20BL-U

Magnum ms_series 2012-4048 _spec_sheet.pdf

Features

• Pure Sine Wave – Power your sensitive electronics without worry. The MS Series provides reliable, utility-grade power.
• Power Factor Corrected (PFC) Charger – Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger – 25-30% less AC current than standard chargers.
• Battery Profile Presets—Using the ME-RC, ME-ARC, or ME-MR Remote Controls, you can easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP)—only available via the ME-RC and ME-MR—gel, Flooded, AGM1, and AGM2.

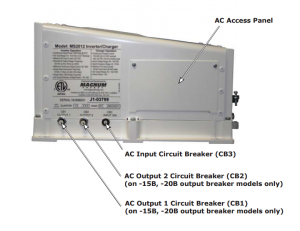

• Convenient Wiring Access – An extra large AC access cover with terminal screw block and 360° DC connection terminals with covers make wiring easier.
• Choices – The MS Series is available in 12, 24, and 48-volt configurations.
• Versatile Mounting – Mount the MS Series inverter/charger on a shelf, bulkhead, or even upside down.
• Multiple Ports – The MS Series provides multiple ports, including an RS485 communication port for network expansion and a remote port.
• Convenient Switches – The MS Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
• Expanded Transfer Relay – 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only. Introduction The MS Series inverter/charger is a line of pure sine wave inverters designed for mobile, backup, and off-grid applications. MS Series inverter/ chargers are powerful, easy-to-use, and, best of all, cost-effective. Model Numbers
• MS2000-GL, MS2000-L-U, MS2000-L-F, MS2000-15BL-U, MS2000-20BL-U, MS2000-20BL-F
• MS2012-GL, MS2012-L-F, MS2012-L-U, MS2012-20BL-F, MS2012-20BL-U • MS2024-L • MS2812-GL, MS2812-L-F, MS2812-L-U • MS4024-L-U • MS4048-L, MS4048-20BL Available For
• Backup Systems • Marine Systems • Off-Grid Systems • RV Systems • Trucks Available Accessori

Extended lead times may apply. Additional freight charges may apply after submitting your order.
