SolarEdge’s Innovative Inverter Topology
Because Maximum Power Point Tracking and voltage management are handled separately for each solar module by the SolarEdge power optimizer, the single phase inverter is only responsible for DC to AC inversion. Consequently, it is a simpler, more cost effective, more reliable solar inverter. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature.
In addition to its functionality as a DC-optimized PV inverter, the single phase inverter also manages battery and system energy as part of SolarEdge’s StorEdge solution.

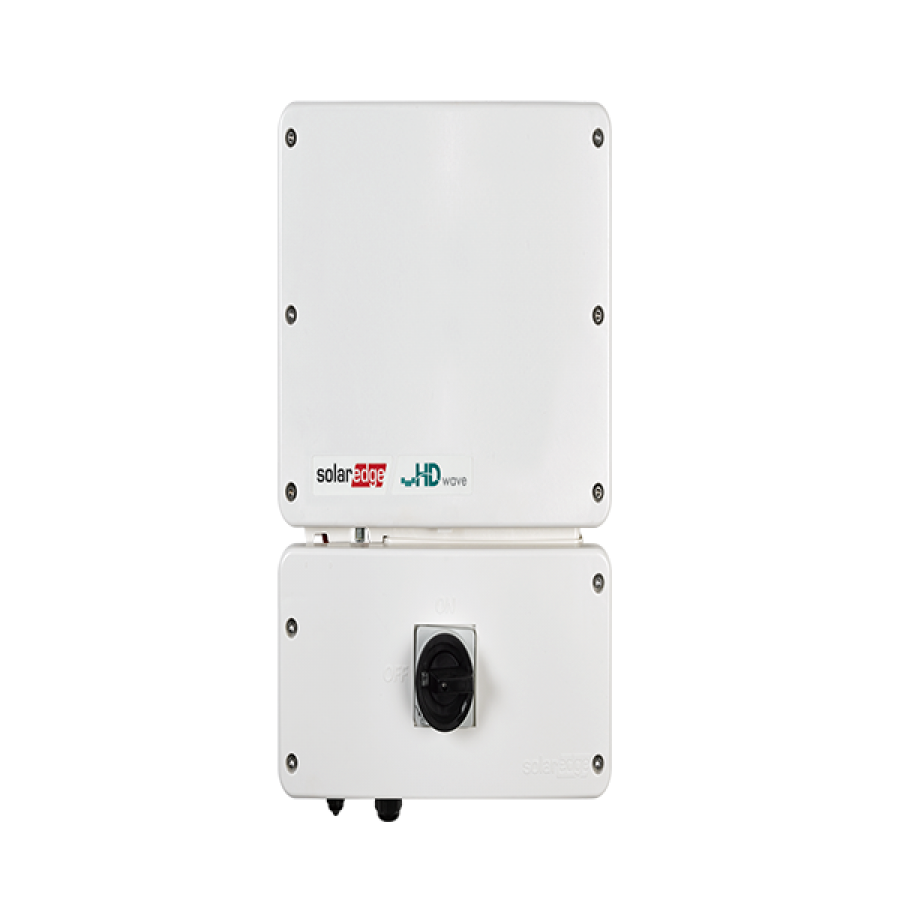

HD-Wave Technology: A New Era for PV Inverters
SolarEdge’s latest generation of single phase inverters are designed using a novel power conversion technology that is based on a distributed switching and powerful DSP processing. The inverter is able to synthesize a clean sine wave that leads to a dramatic reduction in the magnetics and heavy cooling elements. The result is an even smaller and lighter inverter for simplified shipping and storing, and easy one-person installation. The record-breaking 99% efficiency allows more energy production for an improved ROI.

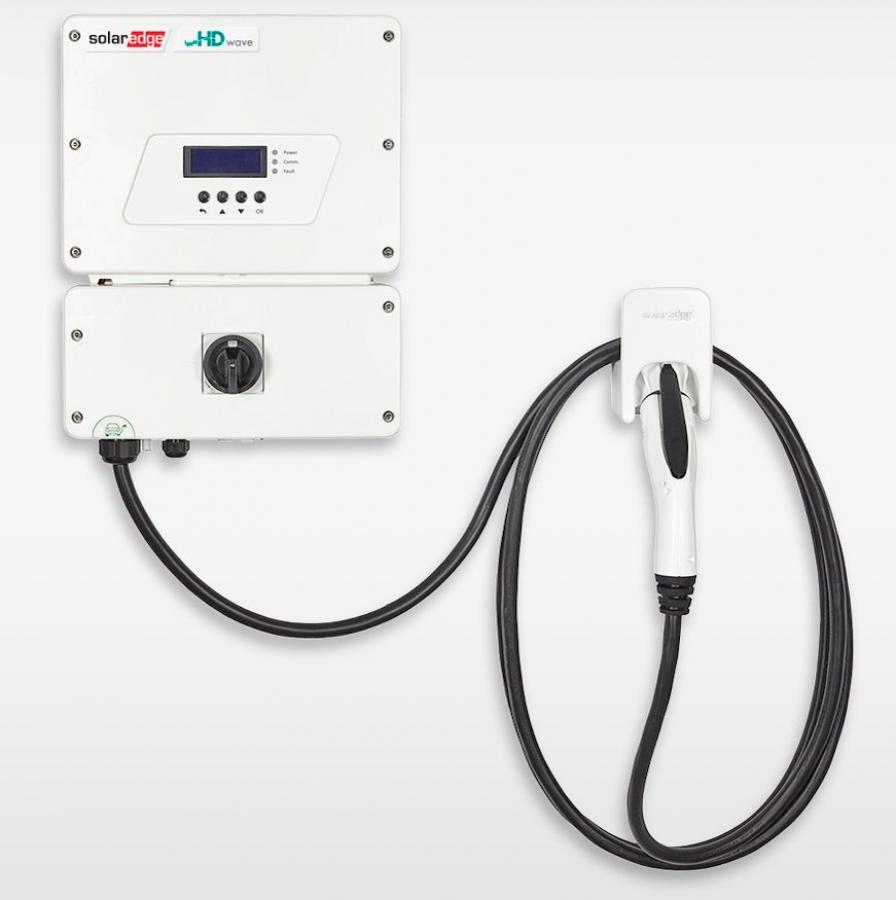

HD-Wave Inverters Now Available with Integrated Production and Consumption Monitoring
Only requiring the simple connection of two external SolarEdge CTs (sold separately) to enable consumption monitoring, giving homeowners clear insight into their energy usage.
