SolarEdge, SE43.2, SE66.6 & SE100KUS Grid Tied Inverters Secondary Inverter(s), (add Primary Inverter) 3-Ph WYE, 60Hz, 1000VDC, 12 Yr Warr, AFCI, with AC-RSD, -40C, RS485 and Ethernet, UL-1741-SA (Rule-21), SESU-USRS0NNN4
Overview
SolarEdge, SE43.2, SE66.6 & SE100KUS Grid Tied Inverters Secondary Inverter(s), (add Primary Inverter) 3-Ph WYE, 60Hz, 1000VDC, 12 Yr Warr, AFCI, with AC-RSD, -40C, RS485 and Ethernet, UL-1741-SA (Rule-21), SESU-USRS0NNN4

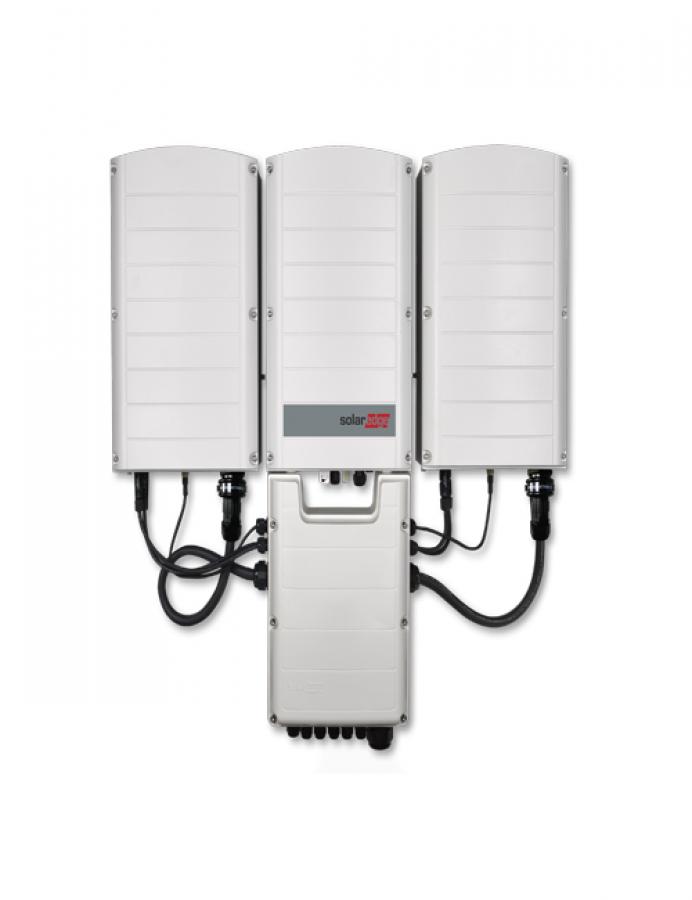

SolarEdge's expanded offering of three phase inverters with synergy technology up to 100kW combines large capacity with ease of installation. The inverter design is based on small, lightweight, and easy-to-carry primary and secondary units. They are wall mounted for a minimal footprint, with installation only requiring a one or two-person crew.
No crane or special tools are needed for installing the inverter, unlike alternative large capacity inverters, which are heavy, bulky, and difficult to install. Installing SolarEdge's large capacity inverters instead of using multiple, smaller capacity inverters will further reduce setup times and costs.
This new generation of SolarEdge three phase inverters is available in the following sizes
- 66.6kW and 100kW for 277/480V grids
- 43.2kW for the 208V grid.
Inverter commissioning has never been this easy. Activating, commissioning, and configuring your inverter is now done directly through your smartphone using the SolarEdge SetApp mobile application.
Key Benefits
- Independent operation of each unit enables easy serviceability for high system uptime
- Connection to the SolarEdge monitoring platform via Ethernet or wireless communications, including optional built-in Cellular Plug-in
- No wasted ground area: wall/rail mounted, or horizontally mounted under the modules (10 inclination)
- Designed for tough working environments
- Includes a built-in RS485 surge protection device plug-in, designed to protect the RS485 transceiver from electrical surges
- Integrated DC safety unit with DC safety switch and optional surge protection & DC fuses, eliminating the need for external DC isolators
- Built-in double RS485 plug-ins
- SE43.2K - Three Phase Inverter with Synergy Technology for the 208V Grid
- SE66.6K-SE100K Three Phase Inverter with Synergy Technology for 277-480V Grid
