PRODUCT OVERVIEW

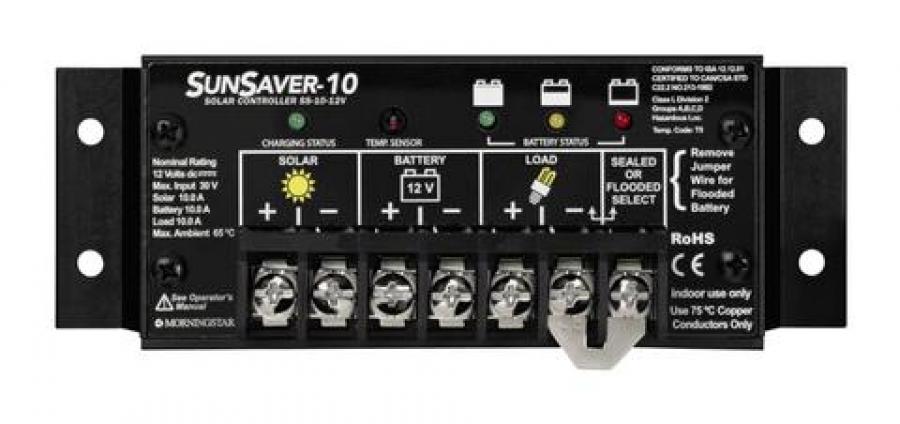

Morningstar’s SunSaver is the world’s leading small solar controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller.

SUNSAVER’S TECHNOLOGY PROVIDES:

• Exceptional Reliability
• PWM Battery Charging
• Consistent High Quality

FEATURES

• Eight versions available (12 and 24 volts, 6, 10 and 20 amps)
• 100% solid state
• Series design (not shunt)
• True 0 to 100% PWM duty cycle
• Setpoint accuracy to 35 mV
• Rated for 25% overloads
• Fully encapsulated in epoxy potting
• Marine rated terminals / anodized case
• Temperature compensation
• Sealed / Flooded battery select
• No need to derate
• Parallel for 40 amps or more
• Green charging / red LVD indicators
• Approved for use in hazardous locations - Class 1, Division 2, Groups A, B, C, D
• ISO 9002 quality programs

STRING CALCULATOR

The Morningstar String Calculator will help you decide how many PV modules you may use in series and parallel with a Morningstar charge controller.
