Midnite Solar, The KID MPPT Charge Controller, 150VDC, 30A, 12-48V Battery

Manufacturer: MIDNITE SOLAR

Be the first to review this product

Product ID: 520-0136

Weight: 7.00 lbs

Call for price

E-mail to a friend

Overview

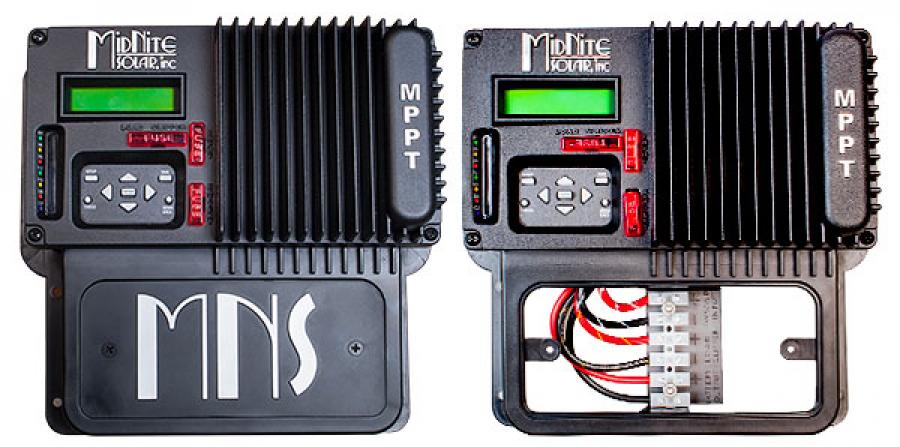

Midnite Solar, The KID MPPT Charge Controller, 150VDC, 30A, 12-48V Battery, with LCD & wall mount bracket, Black, MNKID-B

THE KID IS CERTIFIED TO UL1741 & UL458 (MARINE SUPPLEMENT)
With the UL458 marine supplement, THE KID meets very strict vibration, environment, and thermal requirements.

Comes standard with wall mounting bracket. Model number MNKID-B for the Black standard and MNKID-W for the White standard version. Standard versions can be cut into the wall for a flush mount assembly and also come with a surface mount wall adapter to mount on the wall.

AGS (Auto Generator Start)
The Kid is the first charge controller in the industry to feature a two wire Automatic Generator Start (AGS) as standard equipment. The KID detects when the generator is running by simply watching battery voltage over time. No extra wires or voltage sensing is required making installation a snap.

Lighting Controller
The Kid has a fully adjustable intelligent lighting controller built in. It can turn lighting on at dusk for a select number of hours, turn it off for a length of time and then back on for a programmable number of hours before dawn. All time functions are fully adjustable, allowing users to save valuable energy. An additional feature in the lighting controller allows you to adjust the voltage needed on the PV module for the Kid to register "daytime". This is important if you are using the Kid for a solar street light and the lights are located above the PV modules. Most controllers would end up leaving the light off all night, but not the KID!

MidNite_Solar_spec_sheet_kid.pdf
