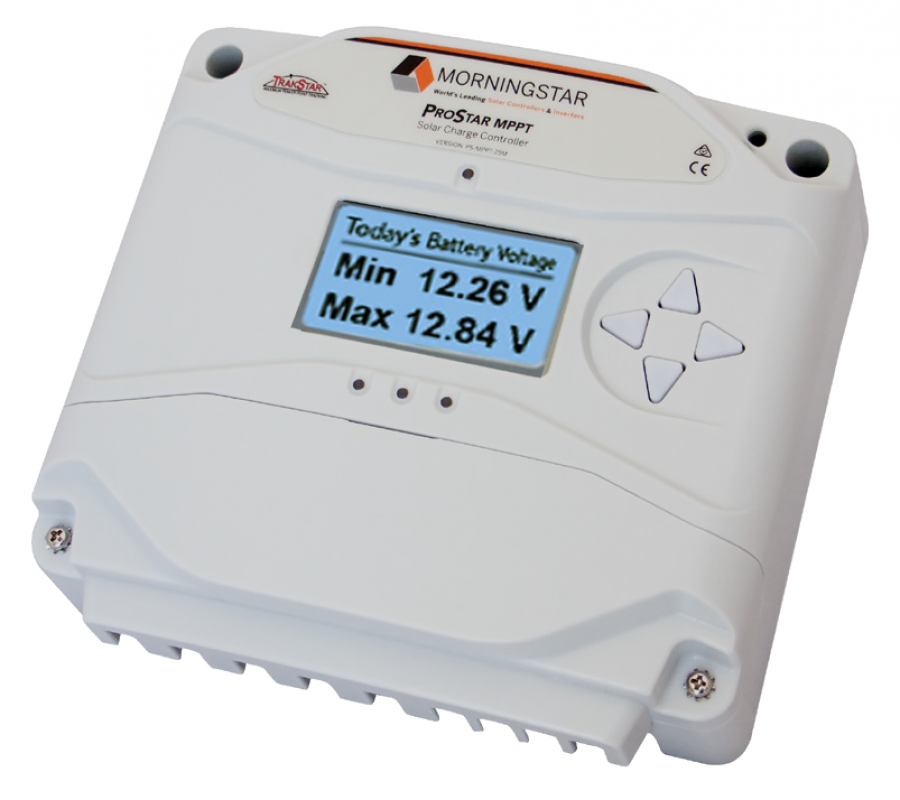

Morningstar PS-MPPT-40-M Prostar MPPT Charge Controller 40 Amp -Digital Meter
The ProStar MPPT series balances features and price so that you get a high performance controller without spending too much money. Morningstar has incorporated the most important features that are often found on higher end models, while keeping the unit very simple and easy to use. Their patented TrakStar technology will maximize your solar yield so that your off-grid system can deliver all available energy to your batteries. The MPPT series of controllers will always outperform the standard pulse width modulation (PWM) type of controllers. Whether your solar panels must deliver the most power possible to your batteries or you just want to ensure that your system is operating at its highest efficiency, the ProStar MPPT series is a great choice.
The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.
Features of the Morningstar PS-MPPT-40-M Prostar MPPT Charge Controller 40 Amp -Digital Meter
NOTE:The PS-MPPT controller is only UL 1741 compliant when installed with the optional PS-MPPT-WB wire box.
- Built-in Digital Meter
- 12/24V Battery Auto Detect
- Advanced field adjustable load & lighting control built in
- Advanced battery programming including Lead Acid, Lithium Ion , and Nickel Iron batteries
- Continuous charging and no damage from oversizing PV array
- 4-stage charging: Bulk, Absorption, Float, Equalize
- Built-in self diagnostics for continuous monitoring of internal hardware issues or system problems
- Fanless design and vast operating temperature range make it suitable for extreme environments
- Very high weighted efficiency keeps power output high even at full power
- 190 days of internal data logging w/NEW graphical view on Meter versions
- Single RJ11 port that can be used for the Meter or for Data mode
- Electronic Protections: Automatic recovery without fuses; Solar Input: overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current; Load Output: overload, short-circuit, high temperature, reverse polarity; Battery: reverse polarity (no battery removal)
- Certifications: CE; RoHS; UL1741/CSA.107.1; IEC 62109; FCC Part-15 class B compliant. Mfr in certified ISO 9001 facility
- 5 Year Warranty
MorningStar-ProStar-MPPT-151020-10-MG-HIGH.pdf
