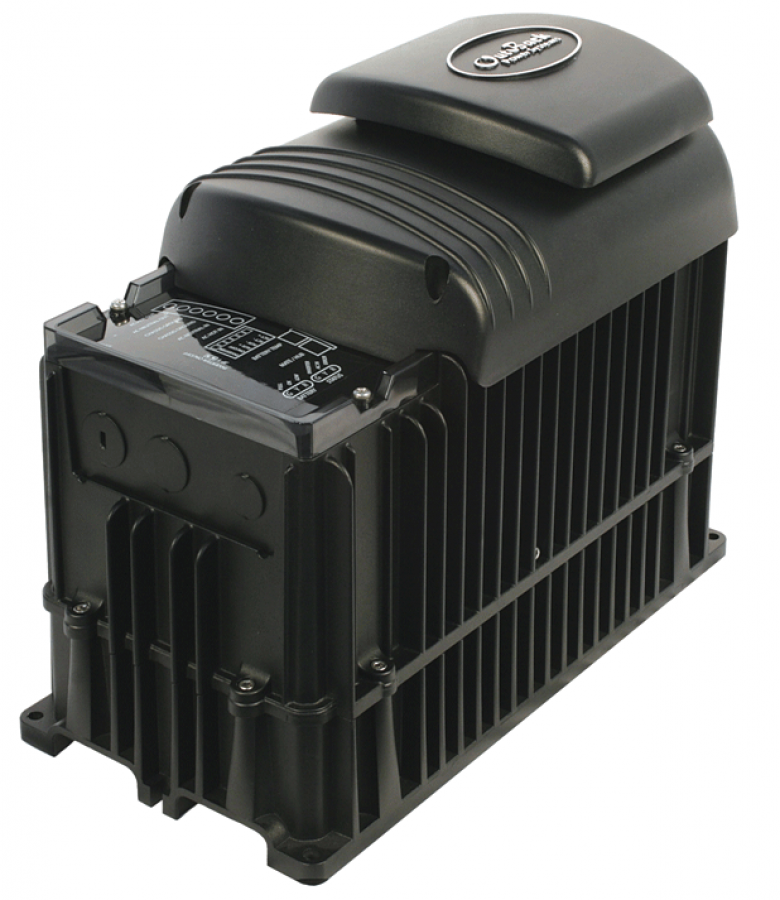

Outback, VFXR3048E Battery ROW Inverter, 3000W, 230VAC, 60Hz(50Hz) selectable, 60A AC input, 48VDC, Sinewave, Grid Tied, 5 Yr Warr, 45A Charger, with BTS, VFXR3048E The latest, most advanced features on the industrys most trusted and proven platformthats the essence of OutBacks new FXR Series of Grid/Hybrid inverter/chargers.
Capable of off-grid or grid-connected operation in a single model, the FXR Grid/Hybrid inverter/chargers provide system designers with unprecedented flexibility and compatibility for nearly any power conversion scenario. FXR inverter/chargers can be paired with a MATE3 to add OPTICS RE to monitor and control system performance from any location.
Available in power ranges from 2000W-3600W, multiple units may be stacked and connected with other OutBack Power electronics for more seamless system integration and the ability to function in a wide variety of applications, and system sizes. Up to nine inverters can be combined in a 3-phase system with the 12V, 24V or 48V models, and up to 36kW in a gid-tied 24V or 48V system. The exclusive modular system architecture means that increased power output is just an additional FXR inverter/charger away.
Available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air, the VFXRs continue in OutBacks tradition of absolute dependability in mission critical installations no matter how harsh or challenging the conditions. Features Flexible - Seven programmable modes, including GridZero and Support Mode and built-in networked communications. Single-phase 120V, Sinewave Output in 12V, 24V, or 48V Versions. Up to 93% Operating Efficiency.
Reliable - Advanced Battery Charging (ABC) with expanded charging voltages and time parameters, enabling system designers to accommodate the specific charging profiles and algorithms of new and emerging energy storage technologies including Lithium Ion, Aqueous Ion and Flow chemistry batteries. User Friendly - Easy system upgradability in the field. Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied. Programmable for Seven Different Modes with Generator Assist.
Standard 5-Year Warranty with Optional 10-Year.Outback, FXR2012E FXR2024E FXR2348E VFXR2612E VFXR3024E VFXR3048E battery inverter.pdf
