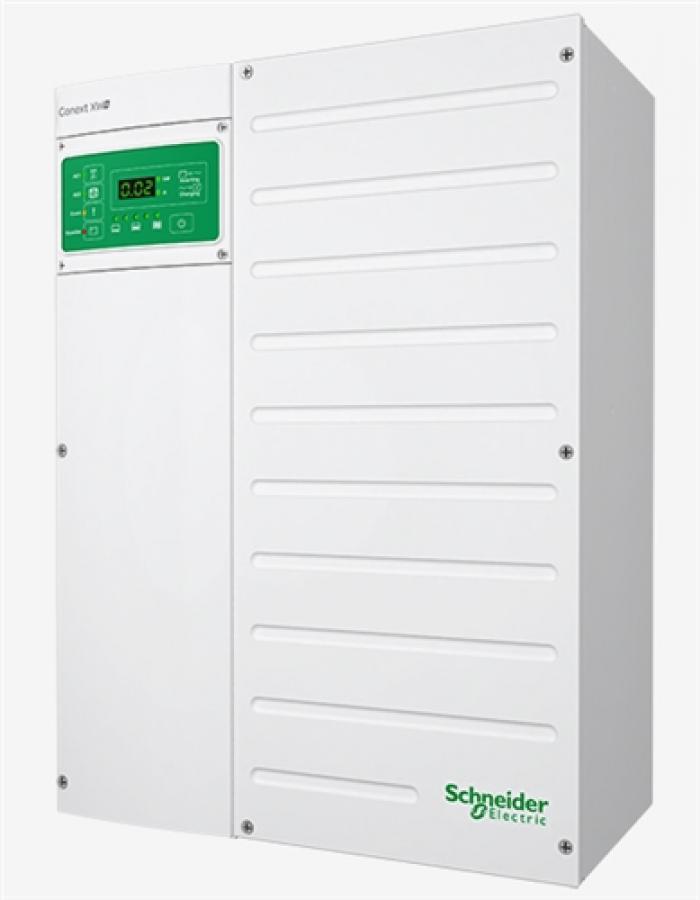

Schneider Electric, CONEXT XW+7048E-230, ROW battery inverter

Product Description Schneider Electric Conext XW+ (RNW865704861) is an adaptable single-phase and three-phase hybrid inverter with grid-tie functionality and dual AC power inputs.
Available solar charge controllers, monitoring, and automated generator control modules enable further adaptability.
From a single Conext XW+ unit to clusters up to 102 kW, the Conext XW+ is a scalable system that allows for the integration of solar capacity as required. Adaptable and scalable, the Schneider ElectricTM Conext XW+ system is the one solution for grid-interactive and off-grid, residential and commercial, solar and backup power applications.

Featurs:

• Model Conext - RNW865704861 Series XW+
• Manufacturer Schneider / Xantrex Mechanical
• Type Single-Phase and Three-Phase Inverter
• Operating Temperature Range -25° C - 70° C (-13° F - 158° F)
• Enclosure NEMA 3R
• Input (DC) Max Voltage 64 V
• Peak Power Tracking Voltage 40 V - 64 V
• Max Current 110 A Output (AC)
• Maximum Output Power 5500 W
• Nominal AC Voltage 48 V
• Nominal Voltage Range 40 - 64 V
• Frequency 45 - 55 Hz (default) 40 - 68 Hz
• (allowable) Max Current 140 A

Schneider XW+ 7048 E XW+ 8548 E Specs.pdf
