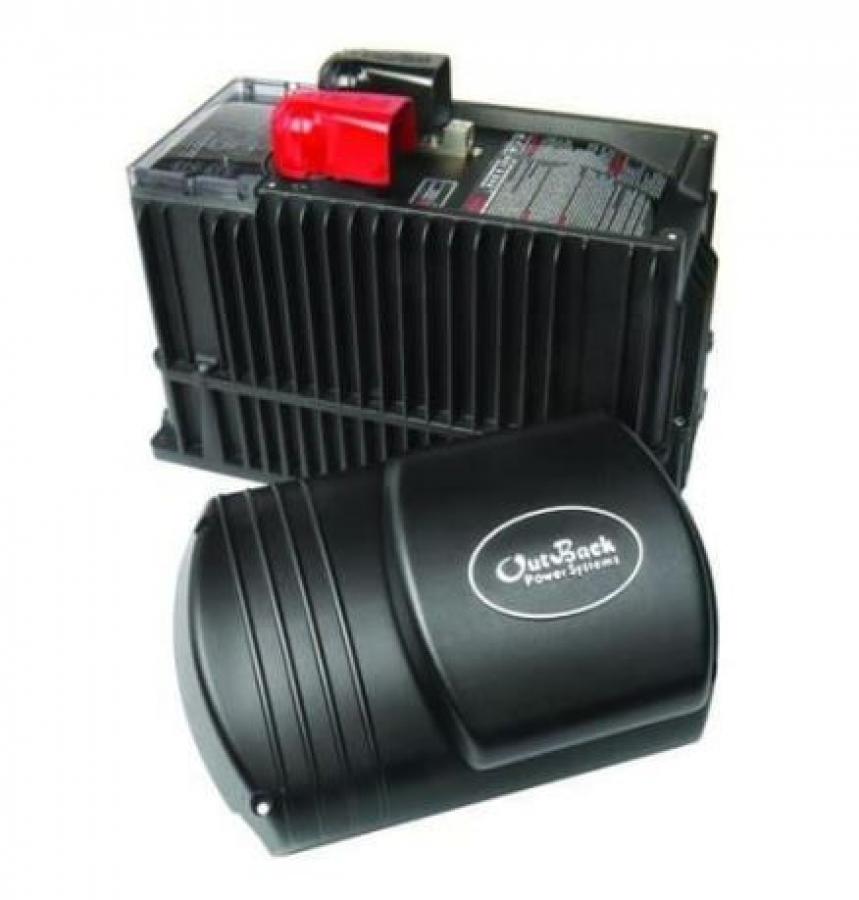

Outback, FXR3048A Battery Inverter

Outback, The latest, most advanced features on the industrys most trusted andproven platform-thats the essence of OutBacks new FXR Series of Grid/Hybrid inverter/chargers. Capable of off-grid or grid-connectedoperation in a single model, the FXR Grid/Hybrid inverter/chargersprovide system designers with unprecedented flexibility andcompatibility for nearly any power conversion scenario. The new FXR features and technologies on the acclaimed FX platform include Both off-grid and grid-tied functionality in one unit Seven programmable modes,
including GridZero and Support Mode and built-in networked communications Advanced Battery Charging (ABC) with expanded charging voltages andtime parameters, enabling system designers to accommodate the specificcharging profiles and algorithms of new and emerging energy storagetechnologies including Lithium Ion, Aqueous Ion and Flow chemistrybatteries Easy system upgradability in the field FXR inverter/chargers can be paired with a MATE3 to add OPTICS RE tomonitor and control system performance from any location.
Available inpower ranges from 2000W-3600W, multiple units may be stacked andconnected with other OutBack Power electronics for more seamless systemintegration and the ability to function in a wide variety ofapplications, and system sizes. Up to nine inverters can be combined in a3-phase system with the 12V, 24V or 48V models, and up to 36kW in agrid-tied 24V or 48V system.
The exclusive modular system architecturemeans that increased power output is just an additional FXRinverter/charger away. Available in sealed or vented units with NEMA type 1 die-castaluminum chassis designed to operate in the harshest environmentalconditions such as high temperatures, humidity or corrosive salt air,the FXRs continue in OutBacks tradition of absolute dependability inmission critical installations no matter how harsh or challenging theconditions.

Product Highlights:
Single-phase 120V, Sinewave Output in 12V, 24V, or 48V Versions 2000W, 2500W or 3000W Sealed Models 2800W, 3500W or 3600W Vented Models Programmable for Seven Different Modes with Generator Assist Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied Up to 93% Operating Efficiency Field Upgradable Software.

Standard 5-Year Warranty with Optional 10-Year

Outback, FXR2012A FXR2524A FXR3048A VFXR2812A VFXR3524A VFXR3648A battery inverter.pdf
