LM 750W Foldable Fat Tire ebike

MOTOR

960W (Peak) 750W (Sustained), 48V Brushless Rear Hub Motor

THROTTLE

Half twist grip throttle

DISPLAY

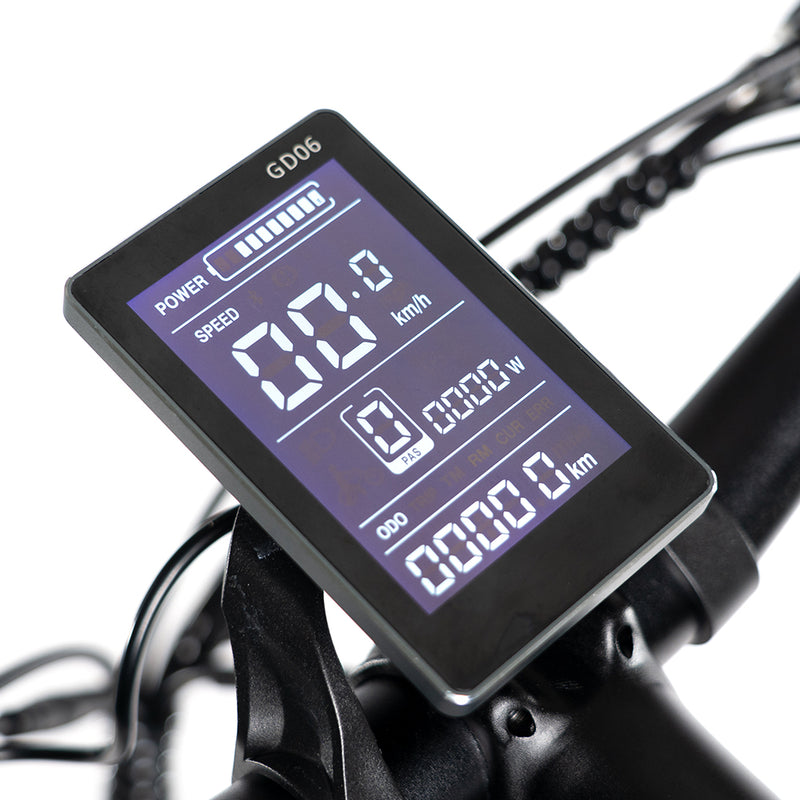

Rattan Ebikes custom GD06 display with Charge
indicator, pedal assist level / error display, headlight /taillight indicator and more

SPEED

Up to 25 Km/h on both Throttle and Pedal Assist.

BATTERY

Removable Lithium-ion 48V, 13Ah (624Wh)

SENSORS

Cadence Sensor, Speed Sensor

PEDAL ASSIST

5 Levels,Low-Profile Cadence Sensing Pedal Assist

CHARGER

Included is a 48V 2 Amp Fast Charger, 4-5 Hour Charging

RANGE

45 Miles Average

FRAME

6061 Single-Butted Aluminum Alloy

WEIGHT

25kg (without battery)

CONTROLLER

Rattan sine wave controller controller,48V, 25A,750W

FORK

Suspension Fork with 80mm travel, with lockout

WEIGHT LIMIT

Maximum Payload Capacity: 300 lbs

KICKSTAND

Included, Rear Mount

BOTTOM BRACKET

Square Taper, Sealed

CRANKSET

170mm w/ 52 T

WIRING

Water resistant connectors and wiring harness

FREEWHEEL

14-28T, 7 Speed Cassette

SHIFT LEVER

7 Speed

BRAKES

Front 180mm and rear 160mm TEKTRO Mechanical disc brake

TUBES

Butyl Rubber, Schrader Valve

HUBS

750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions.

TIRES

CST, custom 20" x 4.0", e-bike rated with puncture-resistant liner *tires received may not include branding

SADDLE

Rattan by QS-8031

SEATPOST

Forged Alloy, 30.4mm x 350mm suspension seat post, 2-Bolt Clamp

FOLDABLE STEM

38.1mm length, 10° Rise

SEAT CLAMP

Quick Release

HANDLEBARS

Aluminum
640*22.2*
25.4MM*2.2T

HEADSET

VP Sealed Bearing Headset

GRIPS

Ergonomic Comfort

PEDALS

9/16' foldable plastic

LIGHTS

Front: Rattan Ebikes branded standard LED Rear: Integrated taillight with brake light indicator functionality

Parts or components used on the bike may differ from what's listed. Rattan Ebikes tests all components for compatibility and quality.
