Wind Turbine ACC, Primus 27' Guyed Tower Kit

Primus Windpower 27' AIR tower kits

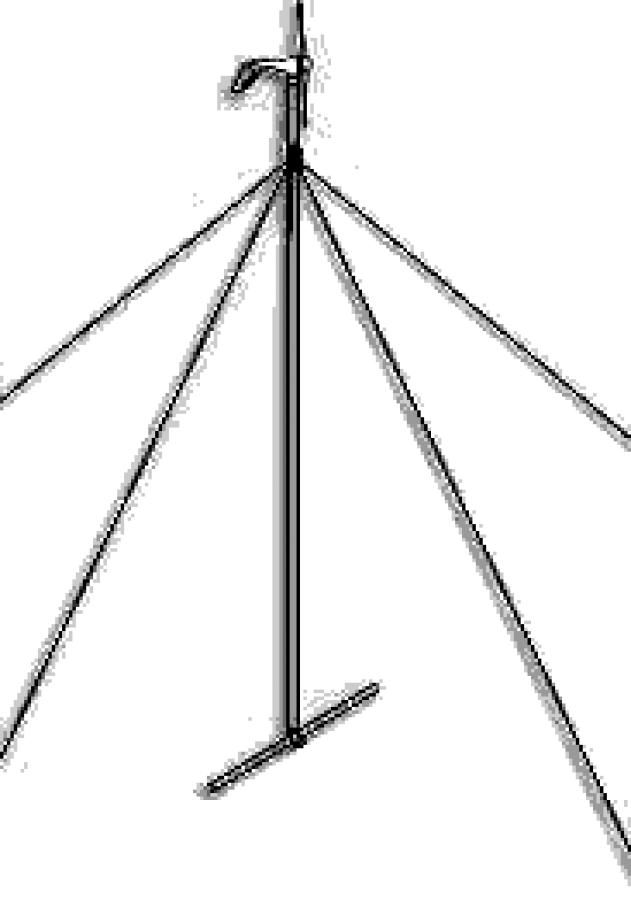

AIR tower kits are available in roof mount, 27'; (8.1m) and 45'; (13.5m) heights. These kits are Professional Engineer Certified (PE Certified). Each tower kit comes with all hardware necessary to install a tower, except guy supports, pipe and cement. All parts bolt or clamp together and no welding is required. Roof mounts include vibration isolators, wall brace clamps and a safety leash, but do not include pole or lag screws.

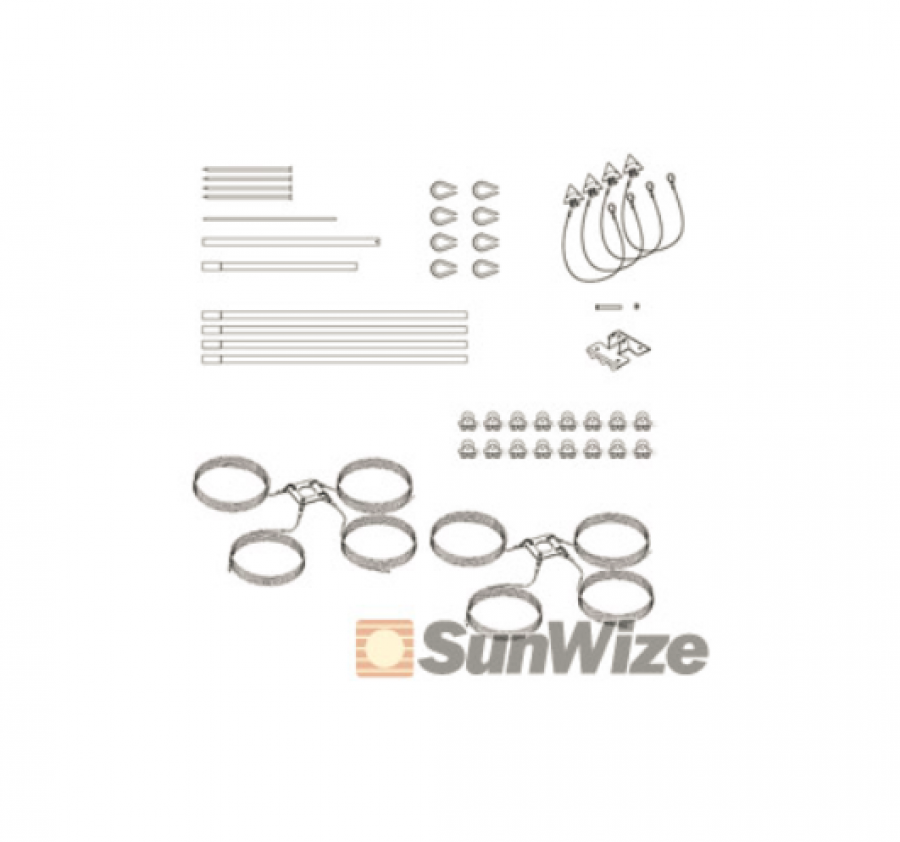

The AIR tower kit includes a simple yet effective elbow/tee for its base. Combined with a short length of tubing this type of base eliminates the need for a concrete pad, base plate and a swivel for the base of the tower. A simple extruded aluminum, coupling clamp allows the use of a wide selection of different kinds of tubing, depending on availability, site requirements and customer preference. Threaded coupling points are eliminated, allowing lighter materials to be used with the same or greater strength than a threaded pipe tower. Pre-cut and swaged guy wires eliminate wire measuring and cutting.

Pipe Pieces Needed:

• 24 foot (7.2 meter) length for tower
• 3 foot (.9 meter) length for tower
• 6 foot (1.8 meter) length for tower base
