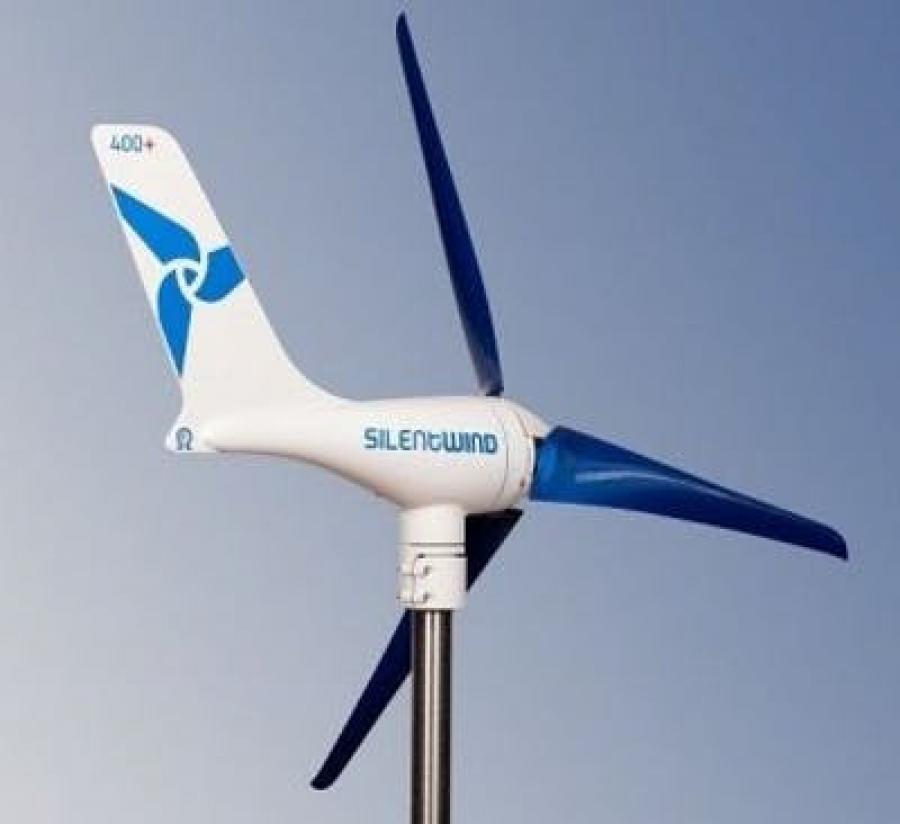

Wind Turbine, 48V, Primus Silentwind

The Silentwind 400 48V Wind Generator 1-ARSW-15-48 has 3 blue blades and can operate in low, medium and high winds with 500 Watts output. The Silentwind Wind Generator output is highly rated, with efficient start-up performance and a start up speed of 2.2 m/s, and a charging speed of 2.5 m/s. Silentwind Wind turbines utilize high quality engineering that incorporates high tensile carbon fiber blades that are very durable, UV resistant and have a long production life.

Wind_Generator_Silantwind.pdf

Their aircraft engineered, aerodynamically designed blades are not only rated with high efficiency, but are also lightweight at 150g for each blade, and incorporate maximum noise reduction. The Silentwind Wind Generators have a high safety rating and require little maintenance once installed. They include an external Hybrid BOOST charge controller for wind and solar energy with a multi-function display panel. Also included is an electronic/manual stop start switch for ease of operation.

Silentwind turbines come with a 3-year warranty, visit this page for additional documentation and warranty information.

Specs for Windgenerator 48V:
Rotor diameter: 1.15m (meters)
RPM range: 550-1700 UPM
Weight of generator: 6.8kg
Package dimensions: 780x400x210mm weight: 10 kg
Generator type: Permanent magnet generator, 3 phases, AC
Rated peak power at: 14.5m/s

Max. power input wind generator: 600 W
Max. current input wind generator: 40 A
Max. power input solar: 550Wp
Max. current input solar: 40A
Max. open circuit voltage input solar: 50VDC
