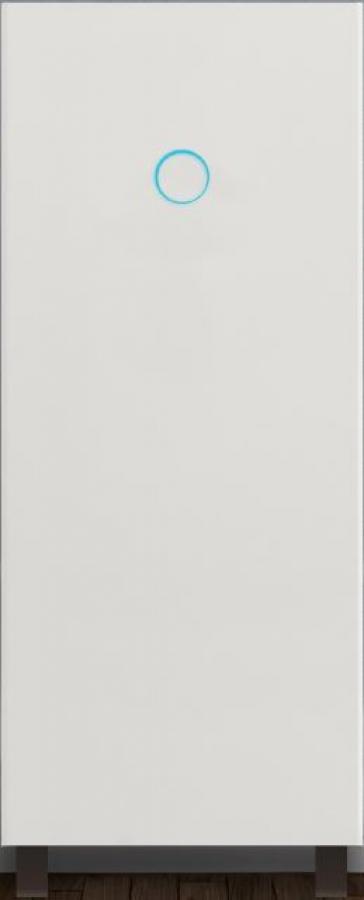

Sonnen, Core, Smart Energy Storage System, 10kWh Capacity, 4.8kW 120/240Vac

Sonnen CORE10 is an AC coupled Energy storage system, meaning it will work with a PV system or stand alone on its own.

There are three operation modes to choose from:

1. Self-Consumption, where the battery discharges to power home loads.
2. Time of use, Battery will discharge to power home loads when utility charges high price for electricity.
3. Back up, to serve as back up to the utility when the power goes out.

All three operation modes will go into back any time the utility goes out.

Sonnen CORE10 Data sheet.pdf
Sonnen CORE installation & commissioning Manual
Sonnen CORE Operation Manual


Packing List

• 1x PV CT with cable "1000705"
• 1x Line 1 CT with cable "1000707"
• 1x Line 2 CT with cable "1000704"
• 2x Short Cat5e cable "1000539"
• 1x Medium Cat5e cable "1000541"
• 1x Long Cat5e cable "1000532"
• 1x X-Long Cat5e cable "1000524"
• 4x Battery module power cable "100625"
• 4x Battery module
• 4x Battery Module Fastening Bolt
• 4x Plastic Fastening Bolt washer
• 36x M6x16mm screw
• 36x Lock washer
• 4x M6 Nut
• 10x Cable entry plug
• 4x Mounting access plug
• 1x Control panel access plug
• 1x Power Unit
• 1x Cover
• 1x Wall Frame
• 4x Wall Bracket
• 1x Bottom Shelf Cover
• 2x Battery Module Shelf
• 2x Support Leg
• 2x Support Leg Adjustment Foot Screw
• 2x Cover Guide
• 1x Battery Module Protection Cover
