SimpliPhi, Phi 3.8, Battery, 3.8kWh, LFP (Lithium Iron Phosphate), 24 volt, with 80A disco and BMS

Manufacturer: simpliphi power

Be the first to review this product

Product ID: 480-0017

Weight: 73.00 lbs

Call for price

E-mail to a friend

Overview

SimpliPhi, Phi 3.8, Battery, 3.8kWh, LFP (Lithium Iron Phosphate), 24 volt, with 80A disco and BMS, UL-1973, PHI-3.8-24-60

CHEMISTRY	Lithium Ferro Phosphate (LFP) The safest Lithium Ion chemistry available No cobalt, risk of thermal runaway or fire
OCPD	Built-in accessible 80 Amp DC breaker On/Off switch
BMS	Built-in Battery Management System
COMPATIBILITY	Compatible with all industry standard inverters and charge controllers Battery bank-to-inverter output sizing must adhere to a 2:1 ratio: battery quantity = (inverter kW_AC rating ÷ inverter efficiency) ÷ battery MAX Continuous Discharge Rate in kW_DC
MAINTENANCE	Maintenance-free No ventilation, cooling or thermal regulation required

Simpliphi-power-phi-3-8-kwh-60-amp-specification-sheet.pdf

SimpliPhi Power 3,800 Watt-hour Lithium Ion 24 Volt Battery

Warranty Notice: Please email us or give us a call so that we can properly determine the minimum kWh capacity you need for your battery bank. If a problem arises, and SimpliPhi determines that your battery bank was undersized for your system, the warranty will be void and will not be honored. This can be easily avoided by allowing us to size the battery bank for you.

NOTE: Most of the Simpliphi batteries are shipped via freight carrier from the manufacturer. Please email us or give us a call for accurate shipping rates.

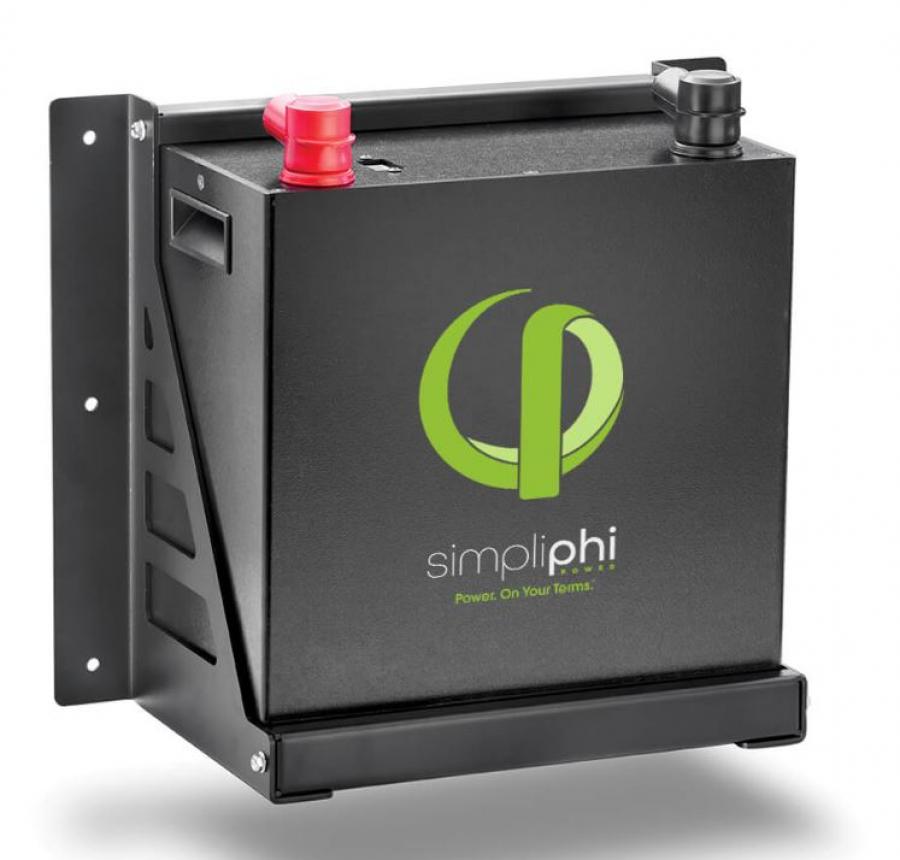

NOTE: The second picture shows the battery with the optional wall mount bracket. The bracket does not come with the battery.

The PHI 3.8 kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

Specifications:

Model: PHI 3.8kWh
24 Volts DC
Nominal voltage: 25.6
Capacity: 151 Amp-hours
Rated Wh capacity at C/2: 3.8 kWh
Max. discharge current: 60 Amps for 10 minutes
Max. Continuous discharge current: 45 Amps
Depth of discharge: up to 100%
Cycle life: 10,000+
Built-in accessible 80 Amp DC breaker On/Off switch - increases safety and simplifies installations
24V LFP batteries with proprietary architecture and Battery Management System (BMS)—do not require ventilation, cooling or thermal regulation
Compatible with all industry standard inverter/charge controllers
Drop in replacement for lead acid
LFP is the safest, most environmentally benign Lithium Ion chemistry available—no risk of thermal runaway or fire
No AC or toxic liquid cooling—negligible parasitic drain—long cycle life
Non-toxic and non-hazardous recyclable materials
Approved CA SGIP Advanced Energy Storage (AES) rebate program supplier
Meets transport safety weight requirements: Less than 35 kg including packaging
UN 3481, Lithium Ion battery contained in equipment, 9, II
UL and CE listed, UN/DOT and RoHS compliant components - UL Certified
Designed and built in California, USA
Dimensions: 13.5" x 14.0" x 8.0"
Weight: 78.24 lbs.
