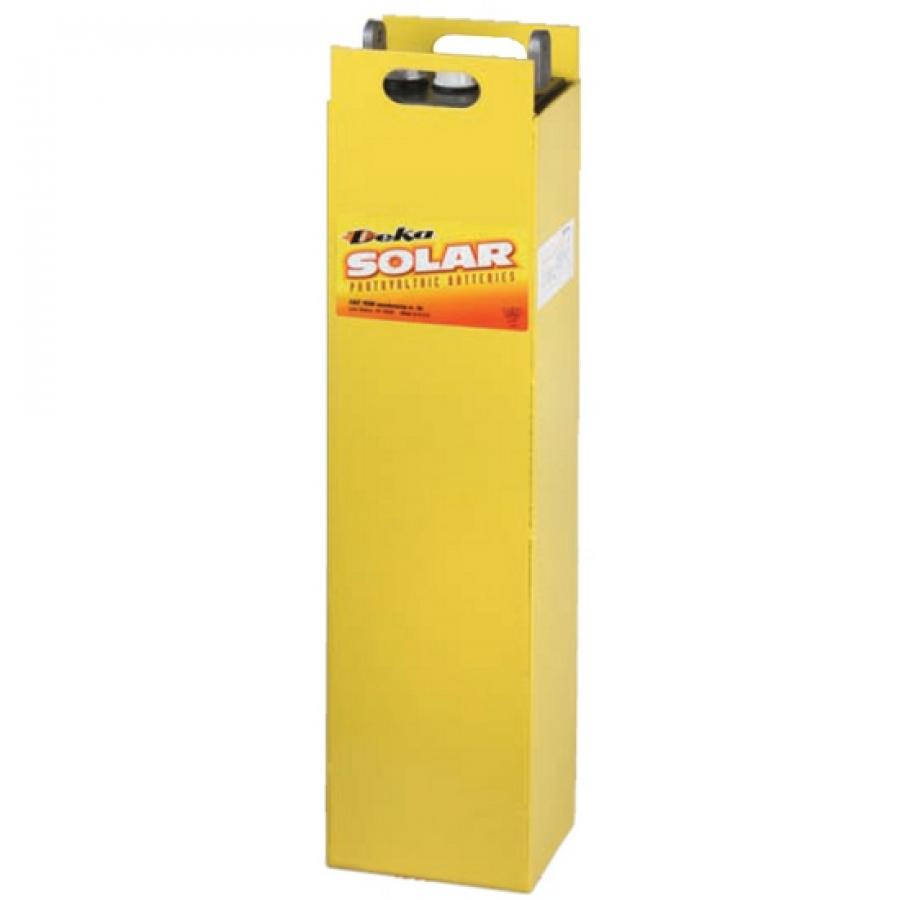

MK Battery, Maintenance Saver Battery, Single Cell, Steel Box, 1896Ah

PRODUCT OVERVIEW

Higher voltage systems naturally have greater power requirements.  The  Deka Solar Flooded System is designed to offer reliable, low maintenance power for renewable energy applications where frequent deep cycles are required and minimum maintenance is desirable.

FEATURES & BENEFITS

• Jar and Cover:  Molded high impact polypropylene
• Seperators:  Microporous polyethylene material
• Retainers:  Vertically and horizontally wrapped glass mat, folded perforated envelope, molded plastic bottom shield
• Positive and Negative Plate:  Antimony flat plate
• Specific Gravity (fully charged):  1.250 @ 25°C (77°F)
• Self Discharge:  1% per week
• Cycle Life:  1500 cycles @ 80% DOD, 4000 cycles @ 20% DOD [Number of cycles based on 6-hr. rate @ 25°C (77°F)]

INNOVATIVE FEATURES

• High Capacity flat plate cells
• Long Life: 12 to 14 years in shallow cycle service
• Extended watering interval - up to six months because of a large reservoir for electrolyte
• Thermally sealed cover to container
• Long-lasting epoxy coated steel trays
• Custom design modules

OPTIONS AVAILABLE

• Jars and covers constructed of LOI material
• Single point watering system
• Design variations based on specific application needs
• Cone and thimble bolt-on terminals
• EZ Link bolt-on connections
• High Density Polyethylene plastic trays

SPECIFICATIONS

Flooded System Discharge Ratings*

• 6 Hr.: 1527
• 8 Hr.: 1608
• 20 Hr.: 1896
• 24 Hr.: 1942
• 48 Hr.: 2111
• 100 Hr.: 2326
• Cell Type: M100
• Height - No Cover: 30-1/2 inches
• Height - Dome Cover: 31-1/8 inches
• Height - Flat Cover: 31-3/8 inches

*Cut-Off Voltage at 1.75 VPC
