FranklinWH Energy Power aPower + aGate Whole Home Storage

FranklinWH Energy Power aPower + aGate Whole Home Storage

Manufacturer: FranklinWH

Be the first to review this product

Product ID: FranklinWH HP

Weight: 460.00 lbs

$11,232.56
~~$13,242.56~~

E-mail to a friend

Overview

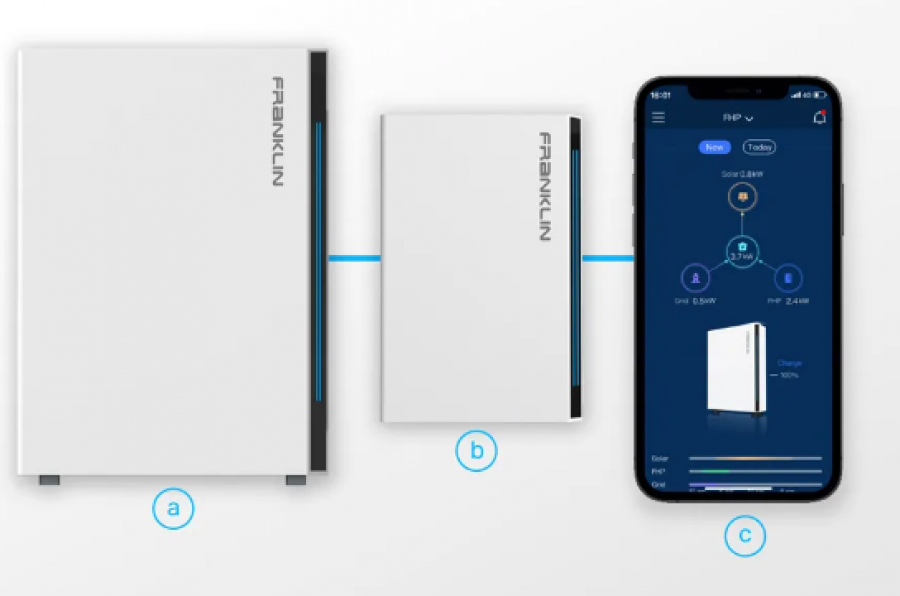

Franklin Home Power

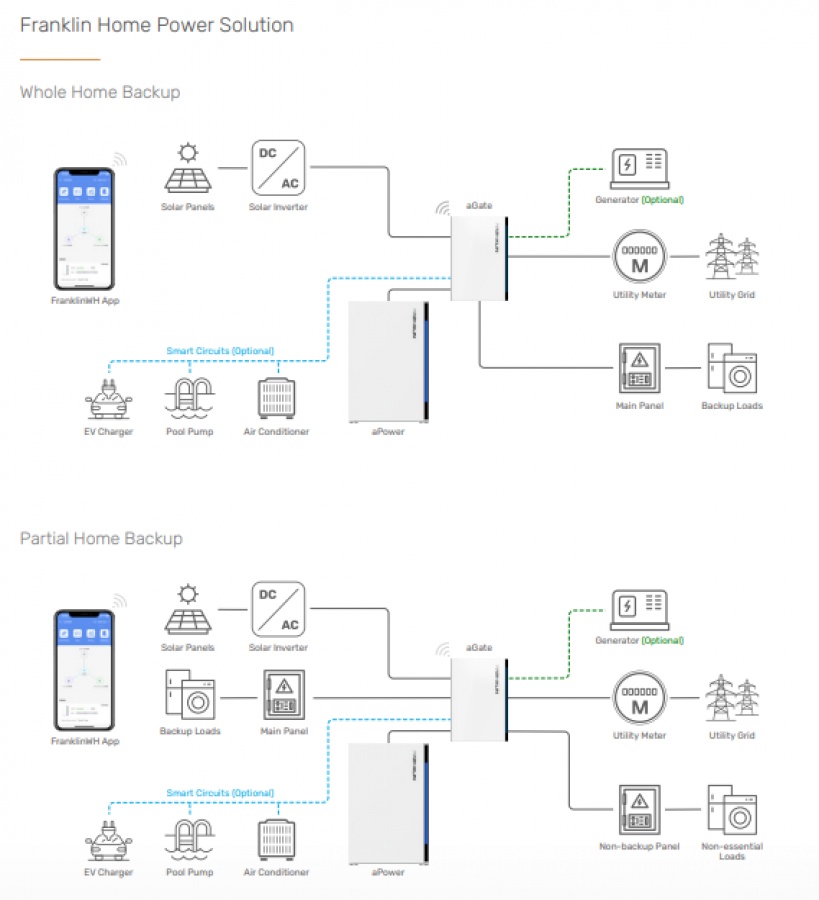

The Franklin Home Power (FHP) system integrates multiple on-site sources of power generation into
a robust energy control system that is managed via a simple mobile app. FHP contains an aGate, the
FranklinWH mobile app and aPower batteries.

FranklinWH Home Power Datasheet (4-page).pdf

aGate - Intelligent Energy Controller

Micro-grid interconnect device (MID)
Stackable continuous output power 5kW to 38.4kW
Compatible with any brand of solar inverter and standby generator
Optional Smart Circuits Module for intelligent load management (installed internally)
Optional Generator Module for intelligent integrations of standby generators in power infrastructure
Outage detection with < 16ms seamless power transfer
Compatible for grid-tied and off-grid applications
MPU avoidance with NEC 2017, NEC 2020, and UL1741 PCS Certification

aPower - Lithium Iron Phosphate Battery

LFP cell battery, scalable 13.6 – 204kWh (15 units per aGate)
12-year warranty, 43MWh energy throughput

FranklinWH App - Easy Energy Management

Simple one-touch programming for Backup Standby, Self-Consumption, and Load Shifting operations
Redundant communication options ensure connectivity: Ethernet, Wifi, 4G
Quick and easy commissioning with remote diagnostic capabilities
Real-time and historic energy monitoring and control of power generation and consumption, in one app
