Franklin Energy AC Coupled Batter - 13.6 kwh storage /5kw discharge
Overview

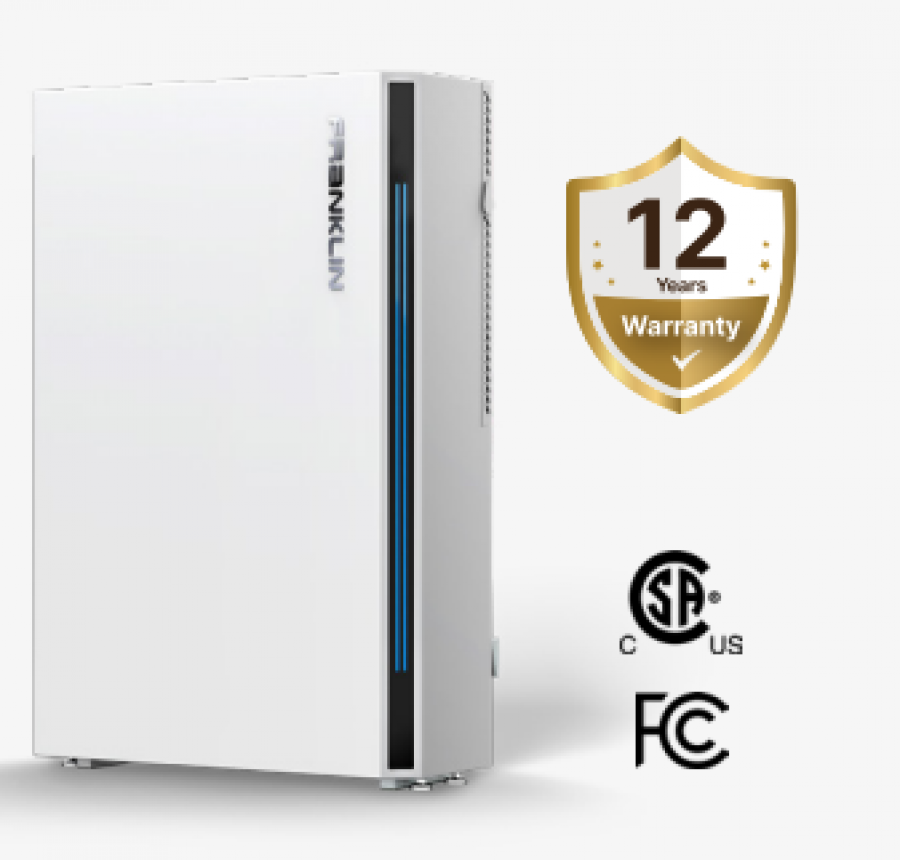

Manufacturer # APR-05K13V1-US
aPower
AC-coupled battery
Store solar-generated power while the sun is shining. Use the stored
energy when needed to lower electric bills. Run heavy loads such as air
conditioners and water heaters as usual, even during grid outages.
Provide homeowners peace of mind by fully charging before severe
weather events.
aPower
AC-coupled battery
Store solar-generated power while the sun is shining. Use the stored
energy when needed to lower electric bills. Run heavy loads such as air
conditioners and water heaters as usual, even during grid outages.
Provide homeowners peace of mind by fully charging before severe
weather events.
FranklinWH aPower Datasheet.pdf
Safe LFP chemistry
Built-in inverter
13.6 kWh per unit, up to 204 kWh (15 units) per aGate
5 kW continuous / 10 kW peak for 10s (discharge)
Normal operations down to -4°F (-20°C)
IP67 protection
Single aPower capable of starting a 4-Ton AC
First-of-its-kind 208 V compliant battery for multi-family housing
Safe LFP chemistry
Built-in inverter
13.6 kWh per unit, up to 204 kWh (15 units) per aGate
5 kW continuous / 10 kW peak for 10s (discharge)
Normal operations down to -4°F (-20°C)
IP67 protection
Single aPower capable of starting a 4-Ton AC
First-of-its-kind 208 V compliant battery for multi-family housing
