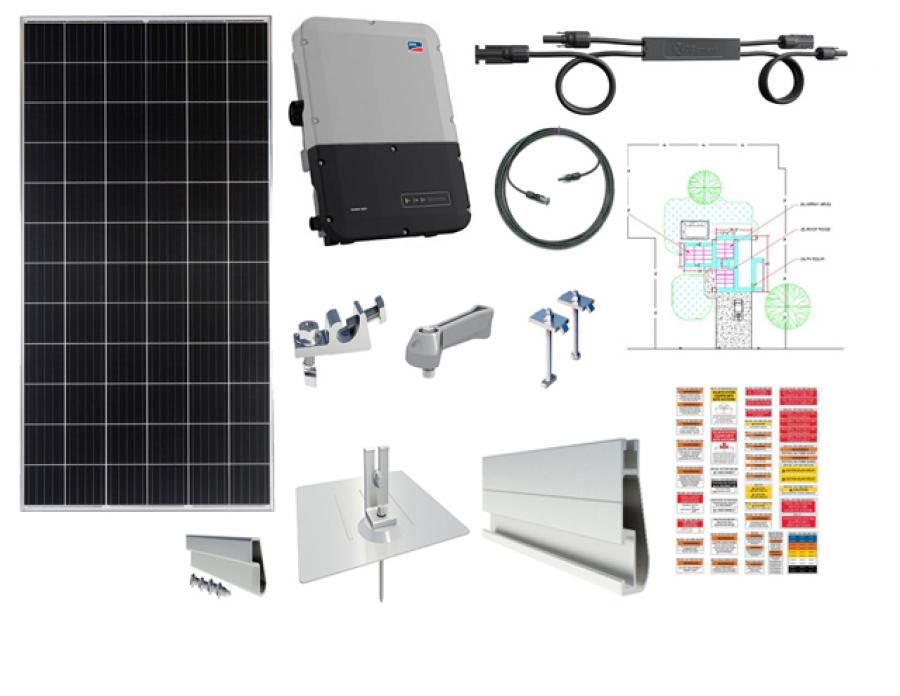

System includes:
Excluding balance of system, all else you need will be available at your local hardware store
With estimated annual production of 15,000 - 17,000 KWH depending on location and array orientation (call for specific production for your location)
99% Energy usability factor & 84% performance ratio and 130% dimensioning factor for maximum performance
- Mission, 385W PV Module, MC4-Compatible, PV Wire, 40mm Clear Frame, White Back Sheet, 72 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA,356.0, PTC, MSE385SR9S
- SMA, Sunny Boy SB-7.7-US 1-Ph Grid Tied Inverter, 7700W, 208/240VAC, 60Hz, integrated DC Disconnect, 3 MPPT Input, 10 Yr Warr, Transformer-less, Arc-Fault, Protection, Built in Ethernet/WLAN, SunSpec RSD compliant, SB7.7-1SP-US-41
- APSmart, Rapid Shutdown PLC Device (RSD-S-PLC), 1000V UL/TUV, 8-80Vdc Input, 250mm (~9.8”) Input/1200mm (~47”) Output Cable, MC4, IP68, SunSpec Certified, 405002
- IronRidge, FX, Rail-Less Ground Lug Kit, FX-LUG
- IronRidge, Universal Bonding Hidden End Clamp, Mill, CAMO-01-M1
- IronRidge, Universal Bonding Module Clamp, Clear, UFO-CL-01-A1
- IronRidge, XR10, Rail 168“ (14‘) Mill, XR-10-168M
- IronRidge, Flashing, Flashfoot2 with Cap-foot, 9“ x 12”, includes: 5/16“ x 4.75” SS Lag Bolt and EPDM washer, Mill, UFO series, Qty. 1,FF2-01-M2 IronRidge, Bonding Attachment hardware for FF2 and L-feet, T-Bolt, UFO series.
- USE-2 Cable, 10AWG, 7-strand with MC4, 600VDC, 25’, 19-JMC4MF10USEB6025
- Labels, NEC-2017 Packaged Set, 12 warning labels (excluding Placard)
- Complete AHJ ready plan set
