OutBack's pre-assembled and pre-wired FLEXpower systems are now equipped with the updated FXR A-01 Series Grid/Hybrid inverter/chargers and meet UL 1741-SA Certification per California's Rule 21.
With the newest Inverter/Chargers meeting UL 1741-SA advanced inverter testing as defined in California's Rule 21, OutBack's FP3 VFXR3648A-01 FLEXpower THREE system is further capable of off-grid or grid-connected operation in a single unit. This means the most advanced Grid/Hybrid inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value. Some of the new features and technologies include:
2 models available for 120/208VAC applications, ranging from 6000W to 10800W
50Hz/60Hz selectable for regional diversity
Programmable for seven different modes including GridZero, blending utility power and stored renewable energy, minimizing grid dependence and also providing a Support Mode for seamless generator integration
Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including Lithium Ion, and Aqueous types
Field-upgradability eliminates system down-time for critical updates
Remote system control and monitoring available through any internet-enabled device with OPTICS RE
The FP3 VFXR3648A-01 FLEXpower THREE is ideal for three-phase power needs such as larger residential, farms and agricultural installations, light commercial applications including small businesses, stores and restaurants, and remote facilities, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint. Up to nine inverters can be combined in a 3-phase system with the 48V models, and up to 36kW in a grid-tied 48V system. The exclusive modular system architecture means that increased power output is just an additional FXR A-01 inverter/charger away.
The FXR A-01-Series of inverter/chargers are available in sealed or vented units with NEMA type 1 die-cast aluminum chassis designed to operate in the harshest environmental conditions such as high temperatures, humidity or corrosive salt air. These inverter/chargers continue in OutBack's tradition of absolute dependability in mission critical installations no matter how harsh or challenging the conditions.
Additional Features
Three-phase 208V, Sinewave Output in 48V Version
(3) 3600W Vented Models
Programmable for Seven Different Modes with Generator Assist
Modular, Stackable Design for up to Nine Inverters in Three-phase and 10 Inverters in Grid-tied
Up to 93% Operating Efficiency
Field Upgradable Software
5-Year Standard Warranty with a 10-Year Option (sold separately)

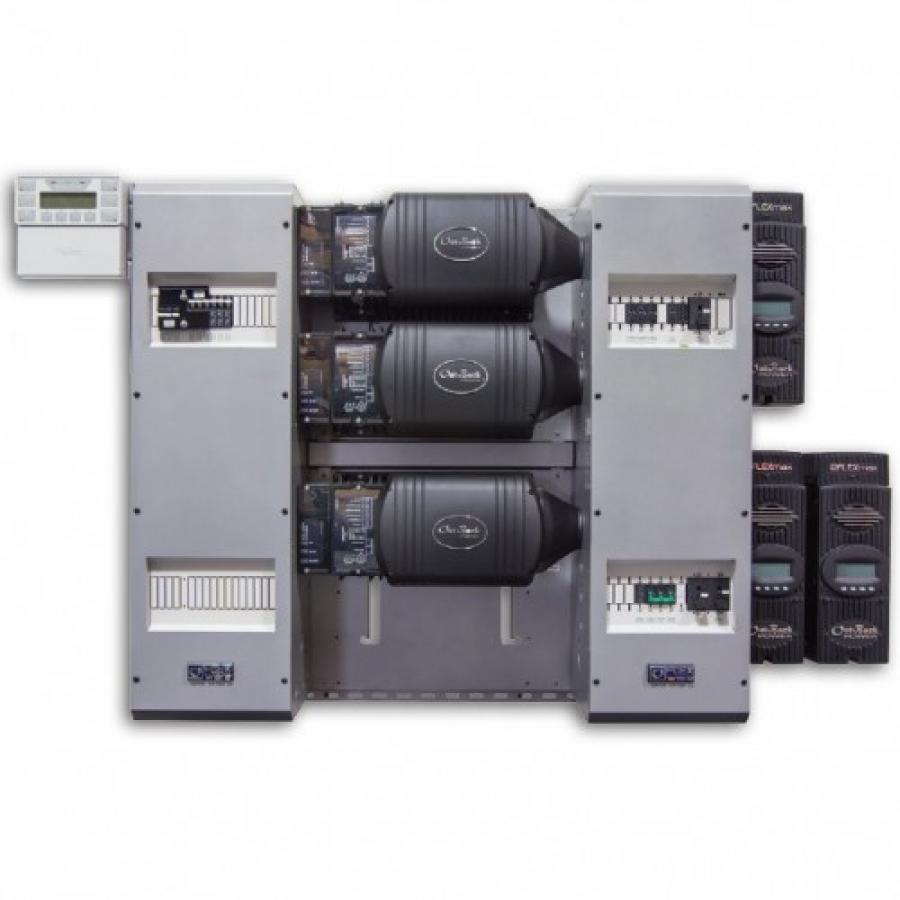

Each FP3 VFXR3648A-01 FLEXpower THREE Is Factory Built and Pre-Wired with These Components
(3) VFXR3648A-01 Vented Inverter/Chargers
(3) FM-80 Charge Controllers
(1) MATE3s Communications Controller
(1) HUB 10.3 Communications Hub
(1) FN-DC FLEXnet DC
(3) FW-SP-ACA Surge Protectors
(2) FW-MP Mounting Plates
(1) FW1000-AC Disconnect Box
(1) FW1000-DC Disconnect Box
(1) RTS Remote Temperature Sensor
(1) FW-IOBT-230/400VAC AC Input/Output/Bypass Kit
(1) PNL-GFDI-80Q PV Ground-Fault Detector Interrupter Breaker
(3) PNL-80-DC PV Circuit Breakers
(3) PNL-175-DC Battery Breakers
(1) PNL-1-AC/DC FLEXnet DC Breaker
Mounting Locations for GFCI Outlets
