OutBack's FLEXpower Radian's are pre-assembled and pre-wired power systems that take the concept of fast, easy installation to a whole new level of performance, value and flexibility.

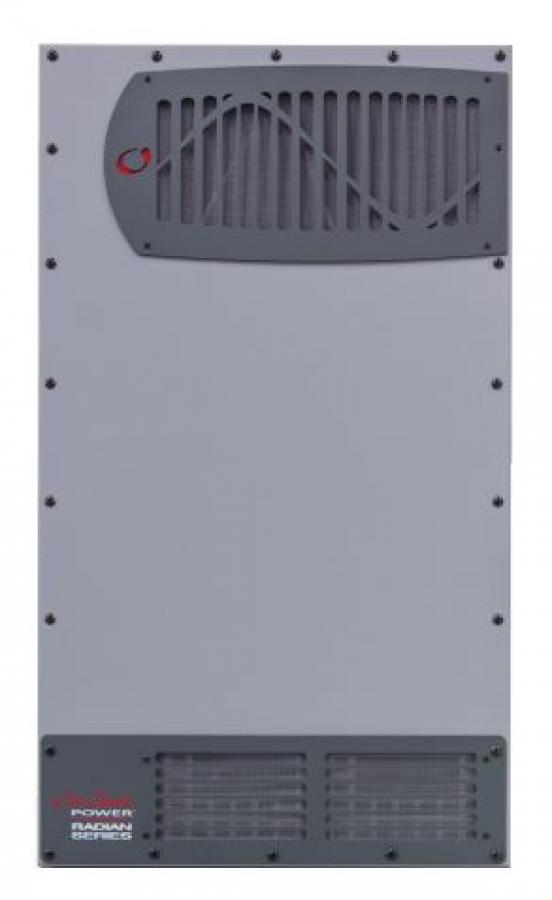

The FPR-4048A-01 FLEXpower Radian integrates a 4000W, 60Hz(50Hz selectable) Radian inverter/charger, FM80 charge controller and other essential devices (besides power sources and battery backup) in a completely integrated, pre-wired and factory-tested system. You just need to install the mounting bracket, hang the system on a wall, make the necessary connections and your system is fully operational. The FPR-4048A-01 FLEXpower Radian is ideal for smaller power applicationsincluding homes, cabins, remote communication sites and backup power systems.
The FPR FLEXpower Radian incorporates OutBack's GridZero technology, a superior level of intelligence in energy management allowing for self-generation and self-consumption programs. The unit is able to provide precise balancing between using stored energy, solar and utility power, blending-in the latter to overcome surges and load spikes. The FLEXpower Radian also features an Advanced Battery Charging (ABC) profile option to support leading-edge battery technologies such as lithium-ion and others, and enhanced diagnostics for improved performance. Dual AC inputs allow connection to both the utility and a backup generator set. The FPR-4048A-01 FLEXpower Radian is compatible with system monitoring and control via OpticsRE and is designed for 120/240 VAC split-phase output.
The FPR-4048A-01 FLEXpower Radian is certified to UL1741 for US applications and CSA C22.2 No. 107.1 for Canada, and is IEC 62109-1 certified to meet the most stringent worldwide PV safety and emission standards.
Features
Split-phase 120/240V, True Sinewave Output, 48V
4000W Radian Inverter
Factory tested, pre-wired and pre-configured
Easy connection with a pre-assembled system and fully integrated GS Load Center
Optimized system footprint for cleaner and quicker installation
GridZero technology optimizes the balance between stored and renewable energy sources, minimizing grid dependence
Advanced Battery Charging (ABC) supports leading-edge battery technologies, including lithium-ion
Dual AC inputs for seamless generator integration in grid-interactive applications
Grid-interactive and stand-alone capability in one unit
System monitoring via web interface with OPTICS RE
Components carry all of the necessary UL Certifications
5-Year Standard Warranty with a 10-Year Option (sold separately)
Includes
(1) GS4048A-01 Radian Inverter/Charger
(1) FM-80 Charge Controller
(1) MATE3s Communications Controller
(1) HUB 10.3 Communications Hub
(1) Mounting Plate and Bracket
(1) GSLC175-PV1-120/240 Prewired Load Center
(1) FN-DC FLEXnet DC
(1) FW-SP-250 Surge Protector
(1) RTS Remote Temperature Sensor
