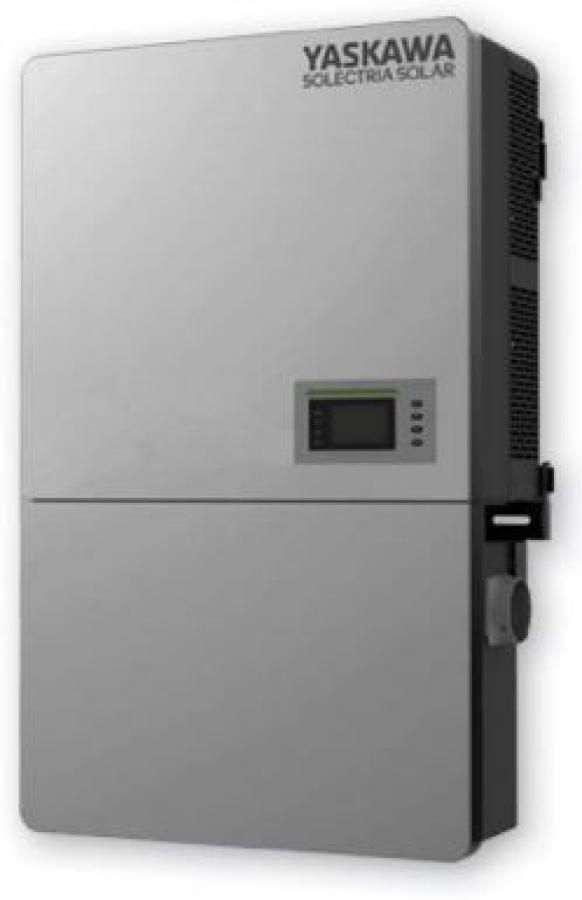

Yaskawa Solectria, PVI 60TL, 3-Ph WYE Grid tied inverter
Overview
Yaskawa Solectria, PVI 60TL, 3-Ph WYE Grid tied inverter, 60kW, 480VAC, 60Hz, 1000VDC, 3 MPPT, 10 Yr. Warr, Transformerless, RS485, Arc-Fault Detection, NEMA 4X, Internal data-logger, Mount: 0 - 90°, [MUST ADD WIRING BOX] PVI-60TL-480
PVI 50/60TL PVI 50TL / PVI 60TL Commercial PV Inverters 50kW and 60kW, 1000VDC Transformerless String Inverters Yaskawa Solectria Solars PVI 50TL and PVI 60TL are grid-tied, transformerless three-phase inverters designed for ground mount, rooftop and carport arrays and can be installed from 0 - 90 degrees.
The PVI 50/60TL inverters are the most reliable, efficient and cost effective in their class.
They come standard with AC and DC disconnects, three MPPTs, a 15-position string combiner, remote diagnostics, remote firmware upgrades and various protection features. Options include H4 wiring box, shade cover, DC combiner fuse bypass, and web-based monitoring.
Yaskawa Solectria Solars three-phase string inverters, PVI 23/28/36/50/60TL paired with Tigos module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements. For more information,
Features Integrated arc fault protection Compliant with UL 1741SA 3 MPPTs with 5 inputs each Integrated DC and AC disconnects AC terminals compatible with copper and aluminum conductors Modbus communications Internal data logger 0 - 90° installation orientation Remote firmware upgrades Remote diagnostics Compatible with certain MLPE for module-level rapid shutdown PVI 50/60TL Options DC fuse bypassH4 wiring boxShade coverWeb-based monitoring Safety
Listings & Certifications CSA C22.2#107.1FCC Part 15IEEE1547a-2014UL 1741SA, CA Rule 21UL 1741SA-2016UL1699B
Solectria pvi_50-60tl_commercial datasheet.pdf
