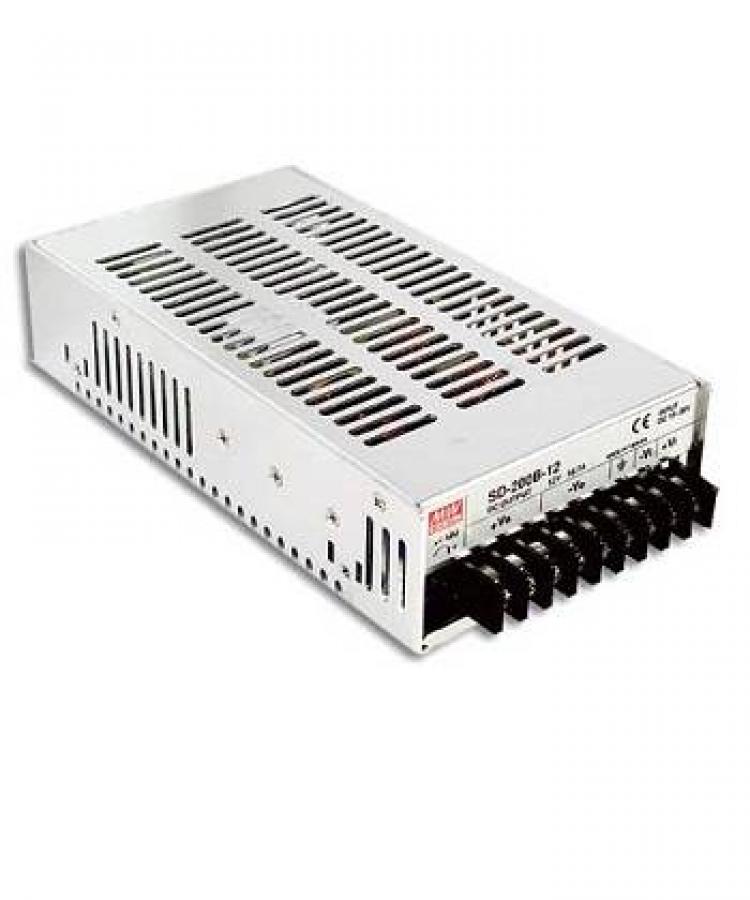

Meanwell, DC/DC Converter, 16.7A, 19-36V, 12V, MEA SD-200B-12
Overview
Features:
2:1 wide input range (4:1 for SD-500/1000)
1.5~2KVAC isolation by models
1U low profile (41mm) for SD-1000
12V/0.25A auxiliary output for SD-500/1000
Built-in remote ON/OFF control and remote sense for SD-500/1006
2:1 wide input range (4:1 for SD-500/1000)
1.5~2KVAC isolation by models
1U low profile (41mm) for SD-1000
12V/0.25A auxiliary output for SD-500/1000
Built-in remote ON/OFF control and remote sense for SD-500/1006
Meanwell_SD-200-spec
Mean Well SD-200 DC/DC Converter The low cost Mean Well SD series of DC-to-DC converters are available with outputs of 5, 12, 24 and (for models rated at 200 W or larger) 48 VDC.
The SD series has a built-in EMI filter and protections against short circuits and overloads.
Versions include SD-200B-12 (part# 002168), SD-200C-12 (part# 017961), SD-200B-24 (part# 002133), and SD-200C-24 (part# 017956).
