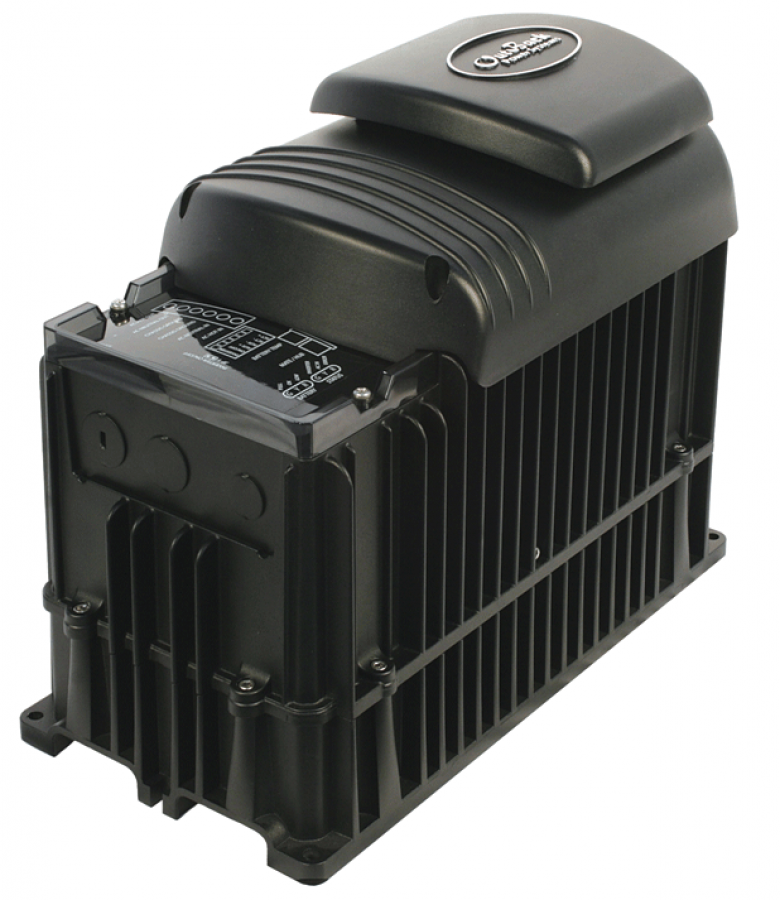

Outback, VFX3232M battery inverter

Outback, VFX3232M 3200 Watts, 32 VDC Inverter/Charger Vented, 30 amp AC input, 120 VAC/60 Hz (DC cover included). Includes built-in AC neutral/ground switching system.
This is a 32 volt DC input inverter intended for marine applications with a 32 volt battery system.
It is suitable for marine applications where it is protected from spray, water, or high humidity.
If you have any of those conditions, then you should use the FX sealed version. OutBack Power's M-Series inverter/chargers provide true sinewave power output, and intelligent battery charging. They are modularly expandable to your power needs providing a complete power conversion solution. They incorporate a DC to AC inverter, battery charger, and an AC transfer switch, which combines 30 amp pass through and neutral/ground switching.
All OutBack Power inverter/chargers produce virtually distortion free sinewave AC power for onboard electronics like sensitive home theater equipment and microwaves with minimal RF interference. Industry leading surge power starts heavy loads like air conditioning. Power factor corrected battery charging gets the most out of your shore cord and generator while maximizing the life and performance of your batteries. Ultra fast AC transfer switch with neutral/ground switching seamlessly transfers shore cord current without dropping loads. Modular expandability is achieved through networked communications, allowing your inverter system to grow with your power consumption needs.
The OutBack Power M-Series inverter is the superior choice when you need a reliable, powerful, modular, and true sinewave inverter/charger.

5 year warranty

Outback, FX2012MT FX2524MT FX2532MT FX2536MT FX3048MT VFX2812M VFX3524M VFX3232M VFX3236M VFX3648M battery inverter.pdf
