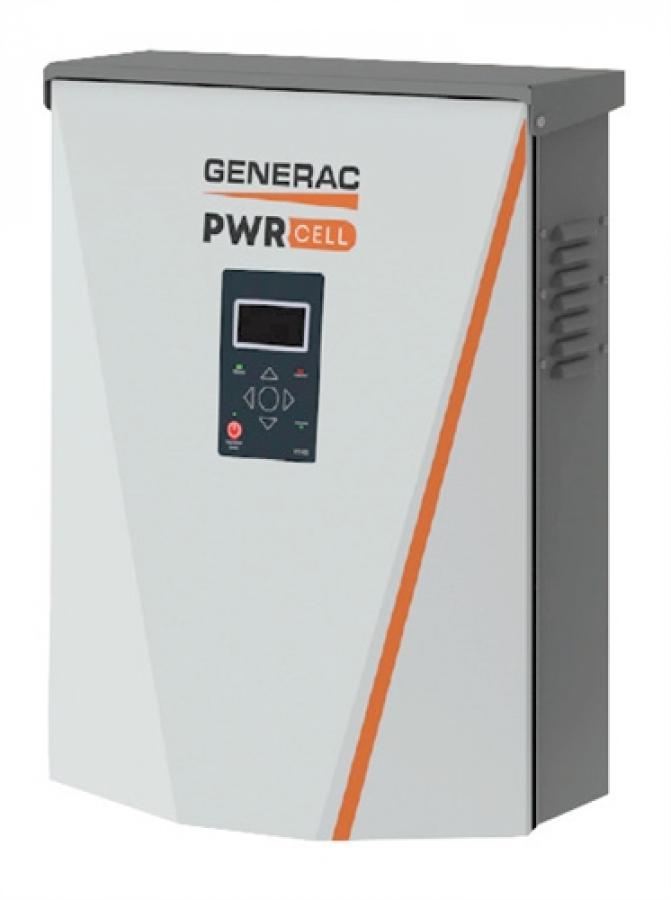

Generac PWRcell 7.6kW Single Phase 120/240Vac Grid-Tied / Battery Back-Up Inverter - UL1741-SA (Rule-21)

Manufacturer Part Number: APKE00014

7.6kW PWRcell Inverter w/ CTs and CT Adapter

Solar-plus-storage is simple with the Generac PWRcell Inverter. This bi-directional, REbus™-powered inverter offers a simple, efficient design for integrating smart batteries with solar. Ideal for self-supply, backup power, zero-export and energy cost management, the PWRcell inverter is the industry’s most feature-rich line of inverters, available in single-phase and three-phase models.

Features

  • No autotransformer or battery inverter needed
  • User-selectable modes
  • Free system monitoring
  • Single inverter for grid-tied solar with smart battery integration
  • Simplified system design: No autotransformer or battery inverter needed
  • User-selectable modes for backup power, self-supply, time-of-use and zero-export
  • Free system monitoring included via PWRview Web Portal and Mobile App
Generac_PWRcell_inverter_apke00014_apke00013.pdf

Specifications

Model APKE00014
Series PWRcell
Manufacturer Generac

Mechanical

Type Grid Interactive / Peak Shaving / Battery Back-up
Operating Temperature Range -0° C - 50° C
Cooling Advanced Front Venting
Dimensions (W x H x D) 24.5" x 19.25" x 8"
Weight 62.7 lbs
Shipping Method Freight

AC Output / Grid Tie

Continuous Power Output at 25° C 7600 VA
AC Output Voltage 120/240 VAC
AC Frequency 60 Hz
Maximum Continuous Output Current 32 A, RMS
Ground-Fault Isolation Detection Included
Charge Battery From AC Yes
THD (Current) < 2 %
Typical Nighttime Power Consumption < 7 Watts

AC Output / Battery Backup

Continuous Power Output at 25° C 8000 VA
Maximum AC Backup Power Output 10000 W
AC Backup Output Voltage 120/240, 1Ø VAC
AC Frequency 60 Hz
AC Circuit Breaker 50 A
THD (Voltage) < 2 %
Automatic Switchover Time < 1 Seconds
Typical Nighttime Power Consumption 30 Watts

DC Input

DC Input Voltage Range 360-420 VDC
Nominal DC Bus Voltage 380 VDC
Max Input Current 20 A
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection Yes
Transformerless, Ungrounded Yes

DC Input / Battery Backup

Maximum Continuous Power 8000 W
Internal DC Distribution Breakers 4X 2P30A
DC Fuses on Plus and Minus 40 A
2-Pole Disconnection Yes

Efficiency

Peak Efficiency 97 %
CEC Weighted Efficiency 96.5 %

Additional Features

Supported Communications Interfaces CANbus, RS4854, Ethernet
System Monitoring PWRview Web Portal and Mobile App
Critical Load Disconnect Yes
Manual Inverter Bypass Switch Automatic
Warranty 10 Years

Standard Compliance

Safety UL1741 SA, CSA 22.2
Grid Connection Standards IEEE1547, Rule 21, Rule 14H
Emissions FCC part15 class B

Installation Guidelines

Battery Types Supported PWRcell battery module
Module String Size Per PV Link Optimizer 2-9 PV modules
Maximum Recommended DC Power From PV 10kW (1Ø)
Batteries Per Inverter Up to 2
