Analytic Systems, AC Battery Charger, 40A, 90-130VAC, 24VDC,ANA BCA1000-110-24

Manufacturer: Analytic Systems

Be the first to review this product

Product ID: 003404

Weight: 13.00 lbs

Call for price

E-mail to a friend

Overview

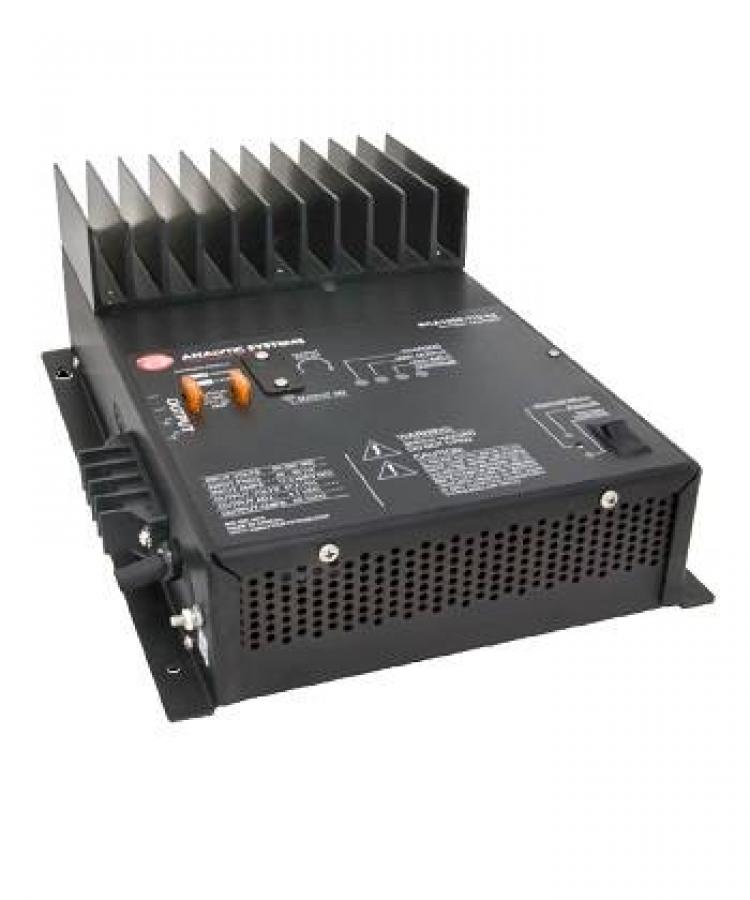

Analytic Systems BCA1000-110-24 AC Battery Charger

Part Number: 003404
Features
50A | 24VDC
Temperature compensated charging
High tolerance for shock and vibration
Ultra-quiet low EMI operation
Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery

Analytic Systems manufactures a wide range of battery chargers that operate from either AC or DC sources recharge virtually any type of battery from 12 to 72 (rail) volts at power levels from 100 to 1500 watts.
All models feature heavy EMI filtering to minimize conducted and radiated emissions, preventing interference with sensitive communications equipment.
Other features include no-spark battery connection, reverse battery hookup protection and adjustable float and absorption voltages.
Traditional BCA series chargers feature precision charging voltages for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72 VDC. Models are available to operate from 110VAC or 220VAC or auto-switching between either voltage at 50, 60 or 400 Hz.
Power levels range from 300 to 1500 watts. All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.

Analytic_Systems_BCA1000.pdf
